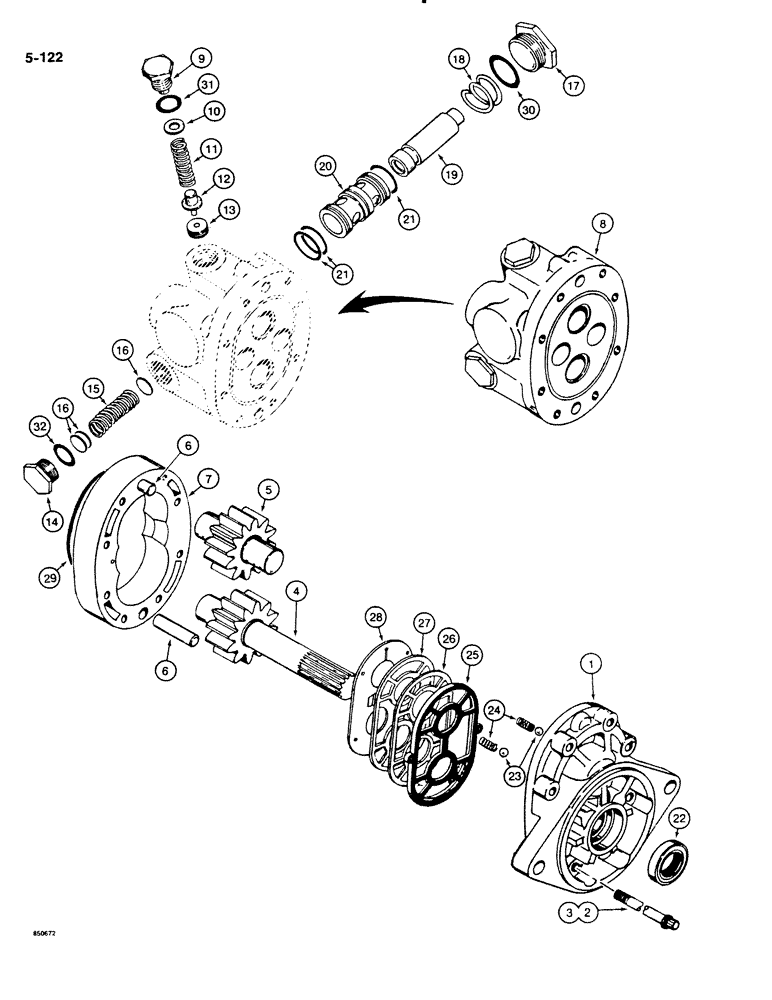

Запчасти Case DH4B (5-122) - STEERING PUMP (05) - STEERING
№
Артикул
Название
Примечание
Количество
H661702
PUMP
ASSEMBLY - steering, Cessna No. 24334-LAF, Includes: Ref. 1-32
1шт.
1
H233528
PLATE
COVER - drive shaft end
1шт.
2
166-32
12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8
BOLT - Ferry head, 5/16" - 18 NC x 2-1/2", grade 8
4шт.
3
166-31
12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8
BOLT - Ferry head, 5/16" - 18 NC x 2-1/4", grade 8
4шт.
4
H663831
GEAR
DRIVE GEAR ASSEMBLY - pump
1шт.
5
H563007
GEAR
DRIVEN GEAR ASSEMBLY - pump
1шт.
6
H753855
GUIDE
DOWEL PIN - pump
2шт.
7
H202804
BODY
HOUSING - gear
1шт.
8
H663849
KIT
COVER ASSEBMLY - port end, Includes: Ref. 9-21
1шт.
NSS
NOT SOLD SEPARAT
COVER - port end
1шт.
9
L33496
PLUG
ASSEMBLY - includes ref. 31 O-ring
1шт.
10
F12267
WASHER
- shim
1шт.
11
L33609
SPRING
- poppet
1шт.
12
H138362
SPOOL
POPPET ASSEMBLY - cover
1шт.
13
NSS
NOT SOLD SEPARAT
SEAT - poppet
1шт.
14
L33501
PLUG
ASSEMBLY - includes ref. 32 O-ring
1шт.
15
L33610
SPRING
- disc
1шт.
16
L33506
DISC
- cover
1шт.
17
L33509
PLUG
ASSEMBLY - includes ref. 30 O-ring
1шт.
18
F21353
SPRING
- spool
1шт.
19
NSS
NOT SOLD SEPARAT
SPOOL - cover
1шт.
20
NSS
NOT SOLD SEPARAT
SLEEVE - spool
1шт.
21
F10894
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
- sleeve
3шт.
673754R92
SEAL KIT
KIT - seal repair, includes two O-rings not used in this pump, Includes: Ref. 22-32
1шт.
22
F11406
SEAL
- shaft
1шт.
23
211-306
BALL,7/32" Dia
- 7/32", grade 100, carbon steel
2шт.
24
F9883
SPRING
- ball
2шт.
25
H262469
SEAL
- diaphragm
1шт.
26
H262477
GUARD
GASKET - protector
1шт.
27
H366922
GASKET
- backup
1шт.
28
D77645
DIAPHRAGM
- pump
1шт.
29
H758599
O-RING,2.989" ID x 3.129" OD
- housing to cover
1шт.
30
R30989
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
- also included with L33509 plug
1шт.
31
S6475
O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro
- also included with L33496 plug
1шт.
32
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
- also included with L33501 plug
1шт.
Выбрано товаров: 35
