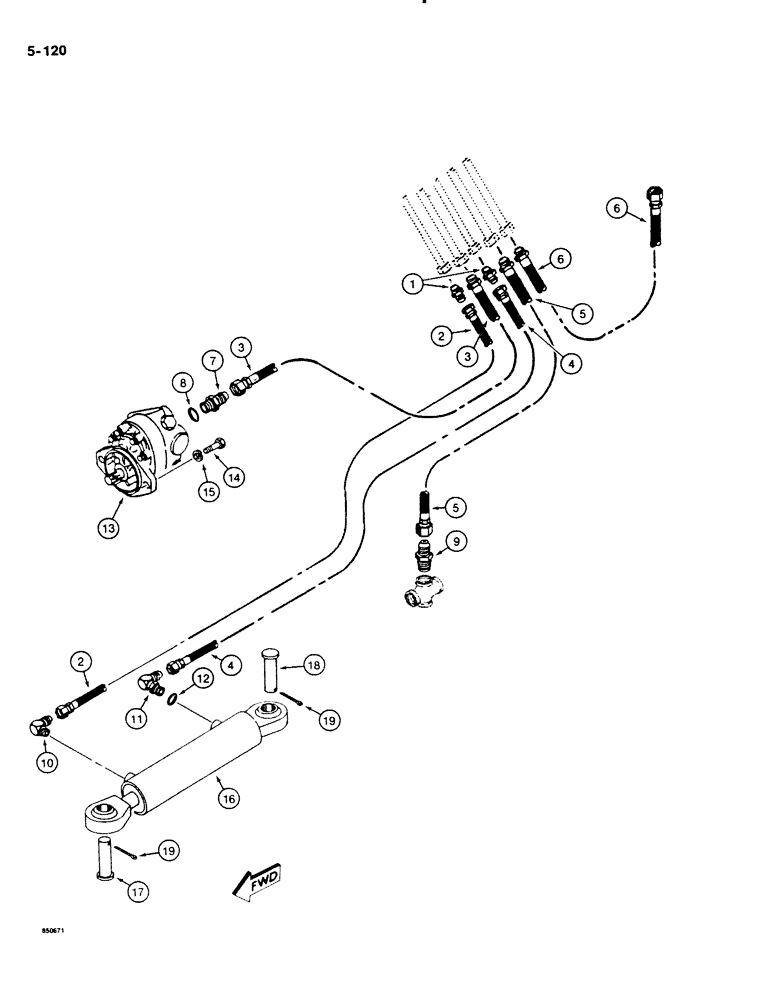

Запчасти Case DH4B (5-120) - STEERING WHEEL HYDRAULIC LINES - LOWER (05) - STEERING

1

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight

2шт.

2

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Connector to Elbow at Rod End of Cylinder 6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

3

H203307

HOSE ASSY.

HOSE - 24" (610 mm) long, Serial Range: tube-pump

1шт.

4

H307959

HOSE ASSY.

HOSE - 52" (1321 mm) long, connector to elbow at closed end of cylinder

1шт.

5

H433212

HYDRAULIC HOSE,9.52 mm ID x 2700.00 mm, SAE 100R1

- Tube to adapter 9.52 mm ID x 2700.00 mm, SAE 100R1

1шт.

6

H433213

HOSE ASSY.

HOSE - 90-1/2" (2300 mm) long, return

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Incl. Ref 8

1шт.

9

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

ADAPTER - straight

1шт.

10

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

13

H661702

PUMP

ASSEMBLY - steering, parts list Figure 5-122

1шт.

See Figure 6-134 for pump drive assembly. See Figure 5-112 for basic steering hydraulic circuit.

1шт.

14

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

H672378

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-130

1шт.

17

H56606

AXLE PIN,30.16mm OD x 142.08mm L

CLEVIS PIN - 1" x 5-1/4" long, steering cylinder, closed end

1шт.

18

H70623

AXLE PIN

CLEVIS PIN - 1" x 3-1/2" long, steering cylinder, rod end

1шт.

19

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

M20704

ADHESIVE

GASKET - form-in-place, 2.8 fluid ounces per tube, use between steering pump and the pump drive housing

1шт.

See Figure 6-135 for pump drive assembly. See Figure 5-112 for basic steering hydraulic circuit.

1шт.

B17423

LOCTITE

- 217 red, 50cc bottle. Use when installing steering pump mounting bolts

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
