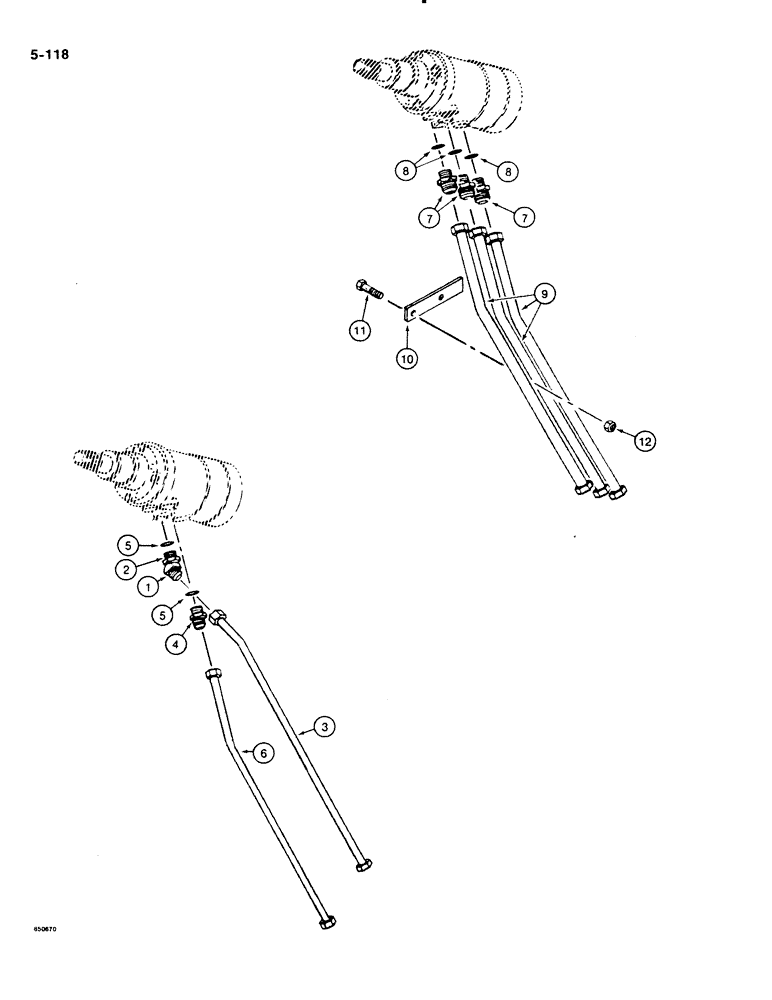

Запчасти Case DH4B (5-118) - STEERING WHEEL HYDRAULIC LINES - UPPER (05) - STEERING

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 2

1шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

3

H656058

TUBE ASSY.,9.5 mm OD

TUBE - steer left

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 5

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

6

H656066

TUBE ASSY.,9.5 mm OD

TUBE - steer right

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, Includes: Ref. 8

3шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

9

H656033

TUBE ASSY.,12.7 mm OD

TUBE - supply and return

3шт.

10

H406272

COLLAR CLAMP

STRAP - tube retaining

1шт.

11

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.
