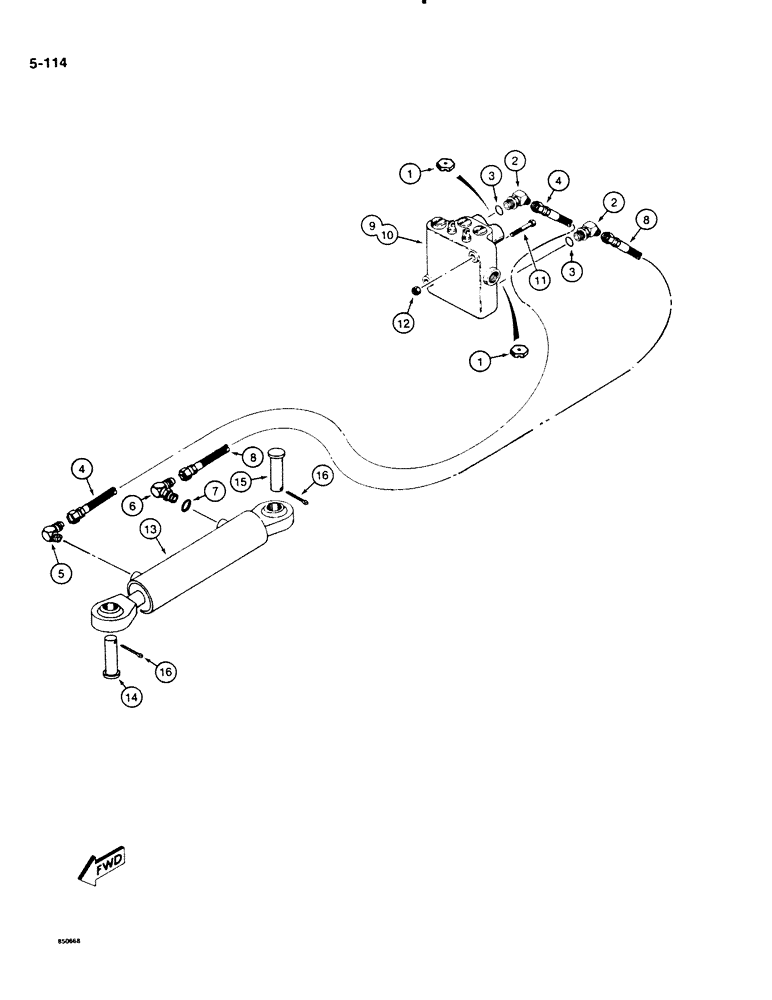

Запчасти Case DH4B (5-114) - MONO-STICK STEERING CYLINDER LINES (05) - STEERING

1

H165654

ORIFICE

RESTRICTOR - flow control

2шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

Control Valve to Steering Cylinder, Rod End 6.35 mm ID x 1524.00 mm, SAE 100R1

1шт.

5

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

8

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Control Valve to Steering Cylinder, Closed End 6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

9

H656454

VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, non-stick units, two-spool, parts list Figure 5-124, if used

1шт.

10

H641050

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, mono-stick units, three-spool, parts list Figure 5-126, if used

1шт.

11

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

13

H672378

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-130

1шт.

14

H56606

AXLE PIN,30.16mm OD x 142.08mm L

CYLINDER ASSEMBLY - steering, parts list figure 5-131

1шт.

15

H70623

AXLE PIN

CLEVIS PIN - 1" x 3-1/2" long, steering cylinder, rod end

1шт.

16

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.
