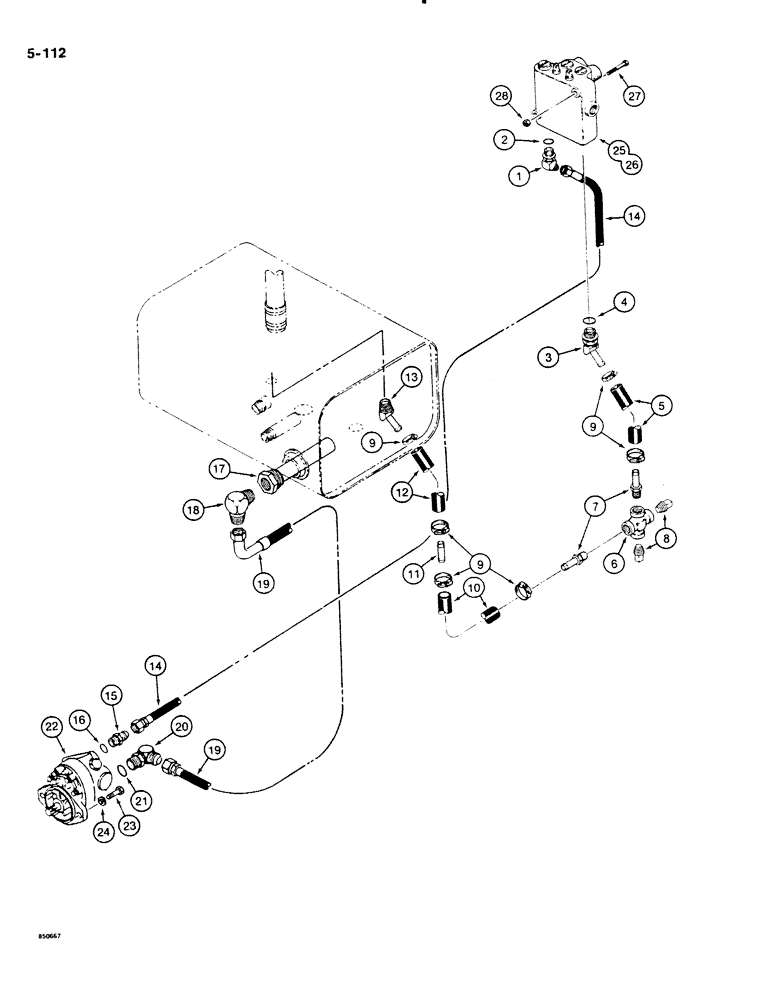

Запчасти Case DH4B (5-112) - BASIC STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, Incl. Ref 2

1шт.

3

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

BARB FITTING - 45 degree, Includes: Ref. 4

1шт.

5

D84666

HOSE,0.75" ID x 14.00"

Barb Fitting to Cross, Cut From D55911 Bulk Hose, See Below 0.75" ID x 14.00"

1шт.

6

221-1505

CROSS

- 3/4" NPT

1шт.

7

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight

2шт.

8

221-48

PLUG

- square head, 3/4" NPT

2шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

6шт.

10

H317313

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 28" (711 mm) long, cross to hose splice tube, see Parts Substitution List for bulk hose options

1шт.

11

H419325

CONNECTOR, ELEC,19 mm OD x 100 mm L

TUBE - hose splice

1шт.

12

H433430

HOSE

- 3/4" (19 mm) ID x 7-7/8" (200 mm) long, return, tube to stem fitting, cut from H433227 bulk hose, see below

1шт.

13

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 45 degree

1шт.

14

H375774

HOSE,9.53mm ID x 1500mm L, SAE 100R1

Pump to Valve, Used on Model with Mono-Stick Steering Control, see Figure 5-121 for Models with Steering Wheel Option 0.38" ID x 59.06", SAE 100R1A

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Incl. Ref 16

1шт.

17

H584631

FILTER ASSY

SCREEN - suction

1шт.

18

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree

1шт.

19

H433445

HOSE ASSY.

HOSE - 23-5/8" (600 mm) long, special, reservoir to steering pump

1шт.

20

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

22

H661702

PUMP

ASSEMBLY - steering, parts list Figure 5-122

1шт.

See Figure 6-135 for pump drive assembly. See Figures 5-118 and 5-120 for steering wheel hydraulic lines.

1шт.

23

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

25

H656454

VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, mono-stick units, two-spool, parts list Figure 5-124, if used

1шт.

26

H641050

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, mono-stick units, three-spool, parts list Figure 5-126, if used

1шт.

27

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

D55911

HOSE

- bulk, 3/4" (19 mm) ID x 28" (711 mm) long, use to make ref. 5

1шт.

H433227

HOSE

- bulk length, 3/4" (19 mm) ID x 149-5/8" (3800 mm) long, use to make ref. 12

1шт.

M20704

ADHESIVE

GASKET - form-in-place, 2.8 fluid ounces per tube, use between steering pump and the drive housing

1шт.

See Figure 6-135 for pump drive assembly. See Figures 5-118 and 5-120 for steering wheel hydraulic lines.

1шт.

B17423

LOCTITE

- 271 red, 50cc bottle. Use when installing steering pump mounting bolts

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, fitting

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
