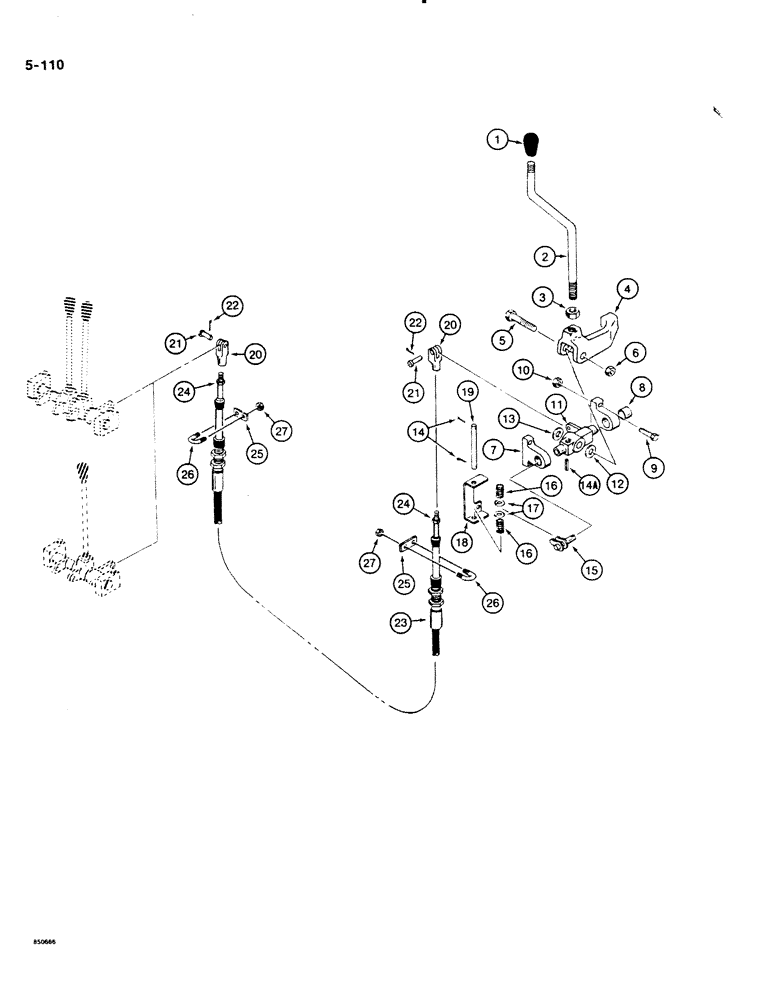

Запчасти Case DH4B (5-110) - MONO-STICK STEERING CONTROL (05) - STEERING

1

H182113

KNOB

- control lever

1шт.

2

H293084

HANDLE

LEVER - steering control

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

BASE - lever

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

7

H558411

BEARING

BRACKET - shaft mounting, Includes: Ref. 8

2шт.

8

H151894

BUSHING

- bracket

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

11

H181974

SHAFT

- control

1шт.

12

H182097

WASHER

- friction, .125" (3.18 mm) thick

1шт.

13

H256305

WASHER

- friction, .062" (1.57 mm) thick

1шт.

14

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

14a

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

15

H560482

LEVER

- steering control

1шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

18

H196691

BRACKET

- centering

1шт.

19

H196709

GUIDE

- centering spring

1шт.

20

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

2шт.

21

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

2шт.

22

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

23

H372763

CABLE PULLING GRIP

CABLE ASSEMBLY - control

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4" - 20 NF, plated

2шт.

25

H373779

LARGE PLATE

SPACER - U-bolt

2шт.

26

H166421

HARDWARE

U-BOLT - cable

2шт.

27

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.
