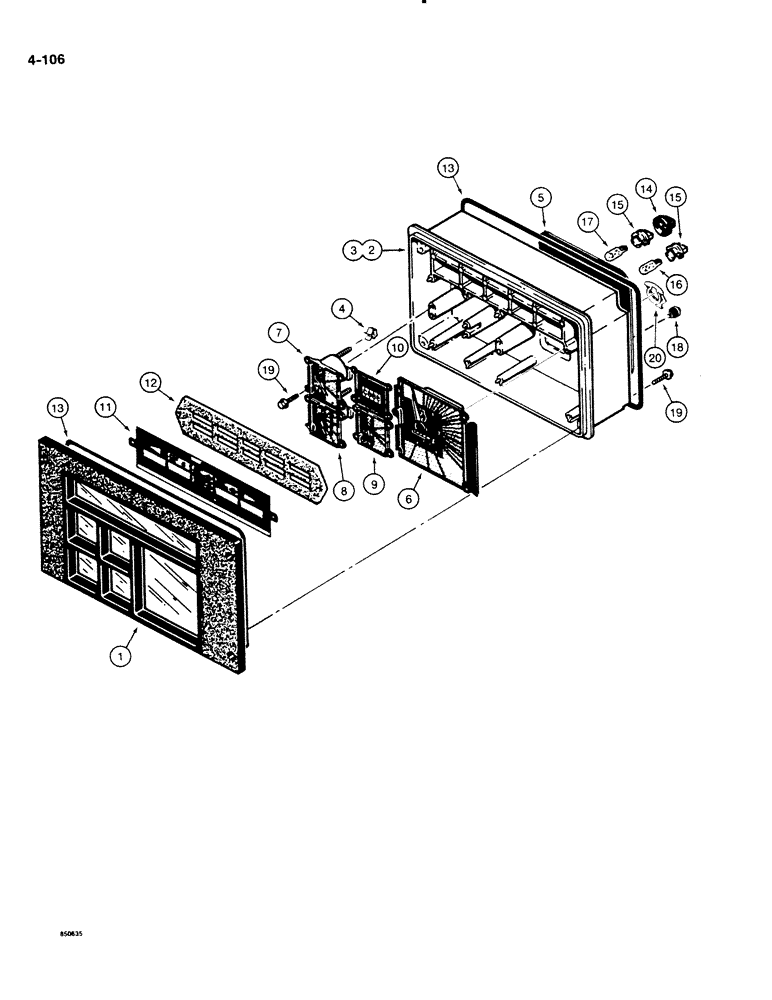

Запчасти Case DH4B (4-106) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

H662247

CLUSTER

INSTRUMENT CLUSTER ASSEMBLY - complete, Includes: Ref. 1-20

1шт.

1

D71334

LENS

COVER - instrument

1шт.

D71335

CASE ASSY.

CASE ASSEMBLY - instrument cluster, Includes: Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - instrument cluster

1шт.

3

H422774

BOARD, PRINTED CIRCU

CIRCUIT BOARD - printed

1шт.

4

H422766

CLIP, SPRING

CLIP - gauges

12шт.

5

H422758

GASKET,1.52mm Thk

- case

1шт.

6

H665398

TACHOMETER

GAUGE - tachometer and hourmeter

1шт.

See Figure 2-36 for tachometer drive cabble and mounting.

1шт.

7

N6806

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

8

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

9

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

10

A45010

COVER

- blank

1шт.

11

H422725

TAG

LENS - identification, warning lamps

1шт.

12

D71342

GASKET,3.05mm Thk

- lens

1шт.

13

D71343

GASKET,4.45mm Thk x 249.68mm ID

- cluster

2шт.

14

D71344

COVER

BOOT - rubber

3шт.

15

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

9шт.

16

W10478

LAMP

BULB - illumination, No. 194

3шт.

17

D71346

TAIL LAMP,12V

BULB - warning, No. 168

6шт.

18

K965957

BOLT

SCREW AND BUSHING ASSEMBLY - instrument cluster

2шт.

19

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

20

A47704

SPRING

- locking

1шт.

21

H413591

CABLE PULLING GRIP

CABLE - tachometer drive, not included with H662247 instrument cluster, not shown

1шт.

See Figure 2-36 for tachometer drive cabble and mounting.

1шт.
