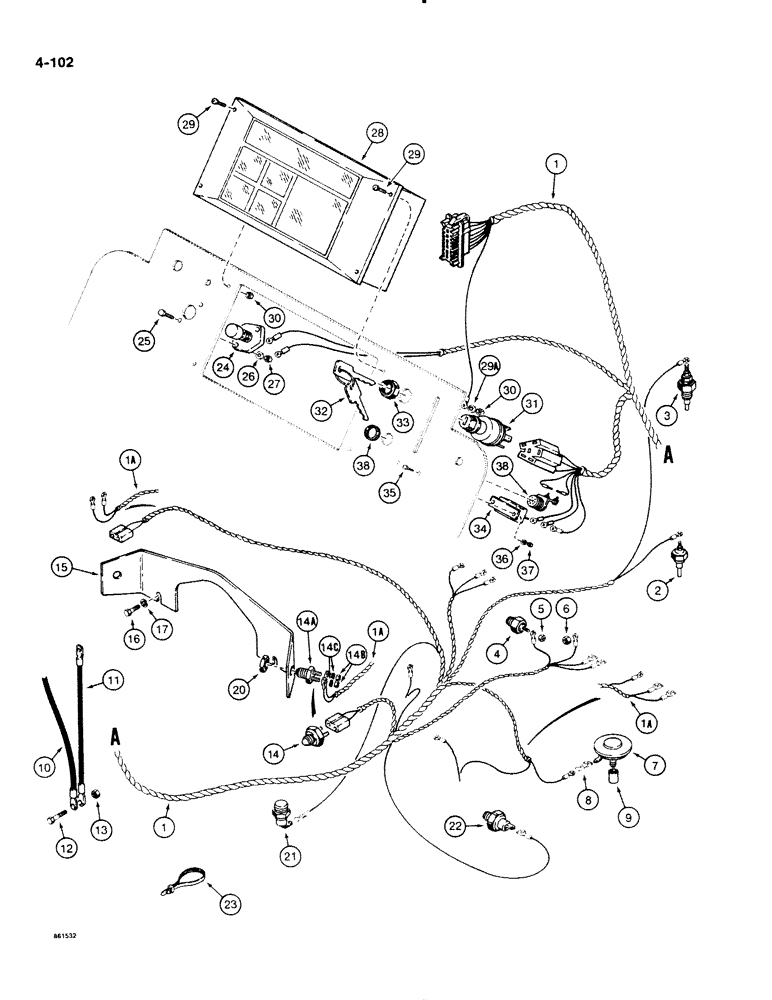

Запчасти Case DH4B (4-102) - ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

H416149

HARNESS

- wiring, used before PIN 1233294

1шт.

1a

H433324

HARNESS

- wiring, used on PIN 1233194 and after, can be used with ref. 7 to replace ref. 1

1шт.

2

H342766

SWITCH

- hydraulic oil filter, used with H649269 filter, see Figure 8-348

1шт.

Ref. 2 - Removed at S/N JAF0002851

1шт.

3

N9067

INDICATOR

SWITCH - hydraulic oil filter, used with H663393 filter, see Figure 8-350

1шт.

4

D70089

TRANSMITTER

SENDER - water temperature

1шт.

5

129-37

NUT,#10-32

1шт.

6

825-1105

NUT,M5, Cl 8

- hex, 5 mm - 0.8, plated

1шт.

7

L103131

INDICATOR

SWITCH - air cleaner restriction indicator, if wiring harness has eyelet terminal, also order ref. 8

1шт.

8

223-94

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - connects to blade terminal, if used

1шт.

9

221-335

COUPLING,Pipe, 1/8" NPT

- 1/8" NPT, sender to air cleaner

1шт.

10

REF

INSTRUCTION

CABLE - battrey to starter, see figure 4-101 for battery and cables

1шт.

11

H256990

CABLE PULLING GRIP

CABLE - solenoid, 10" (254 mm) long

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

14

H406363

NEUTRAL START SWITCH

SWITCH - neutral start, for push-on terminal connection, if used

2шт.

14a

A160237

SWITCH

- neutral start, fro eyelet terminal connection, if used

2шт.

14b

129-16

NUT,#8-32

Used with ref. 14A #8-32

4шт.

14c

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, , Used with ref. 14A Ext, #8

4шт.

15

H408138

BRACKET

- neutral start switches

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

H380386

NUT

- hex, 9/16" - 18 NF, special

2шт.

21

H81935

SENDER UNIT

SWITCH - hydraulic oil temperature

1шт.

22

H411892

SWITCH

- engine oil pressure

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

H35048

IGNITION SWITCH

SWITCH - engine heater

1шт.

25

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

26

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

27

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

28

H662247

CLUSTER

INSTRUMENT CLUSTER - parts list page 37

1шт.

29

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

MACHINE SCREW - round head slotted, No. 10 - 24 NC x 1/2", plated

4шт.

29a

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

30

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

KEY SWITCH - without keys

1шт.

32

A77313

SET OF 2 KEYS

KEYS - set of two keys; Metal Without Padding

1шт.

33

A77314

NUT

- special, key switch

1шт.

34

D37252

BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

35

163-32

SCREW,Hex, #10 - 24 x 1/2"

MACHINE SCREW - hex head, No. 10-24 NC x 1/2", plated

2шт.

36

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

37

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

38

H411322

LAMP BASE

INDICATOR - engine heater

1шт.
