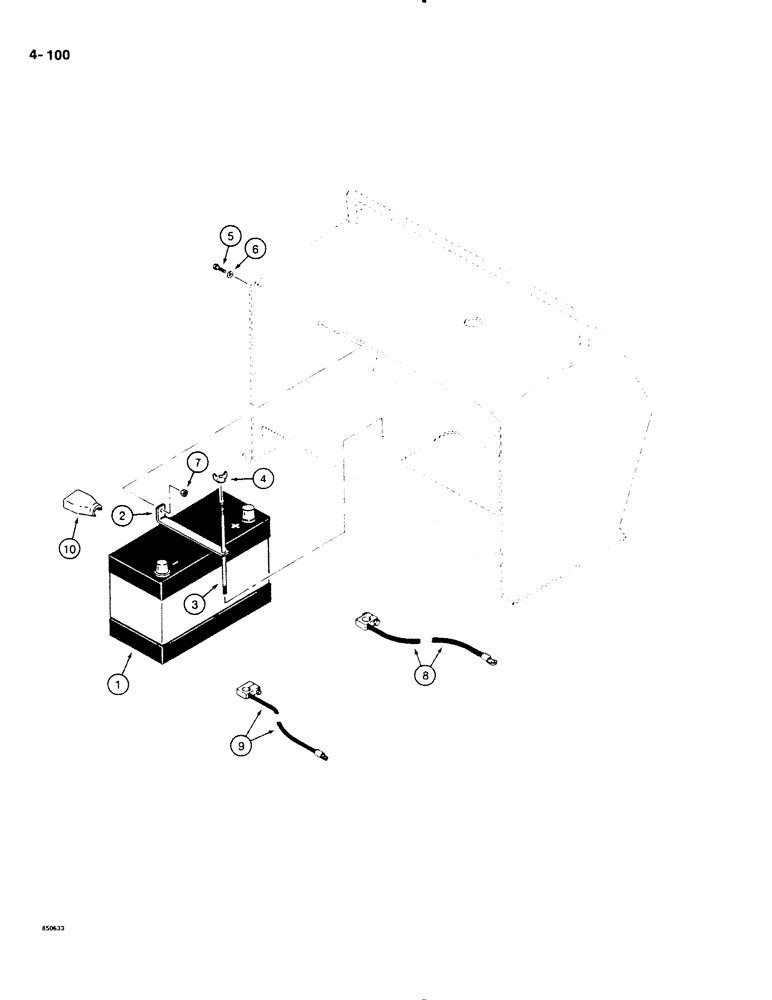

Запчасти Case DH4B (4-100) - BATTERY, MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY, DRY - 12 volt

1шт.

2

H372698

STRAP

RETAINER - battery

1шт.

3

H376384

BOLT

- battery hold down

1шт.

4

129-419

WING NUT,5/16"-18

- 5/16" - 18 NC, plated, top and bottom

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

8

H302950

NEG BATTERY CABLE

CABLE - battery, 52" (1321 mm) long

1шт.

9

H167726

CABLE PULLING GRIP

CABLE - battery, 24" (610 mm) long

1шт.

10

H102681

COVER ASSY

COVER - battery terminal

1шт.
