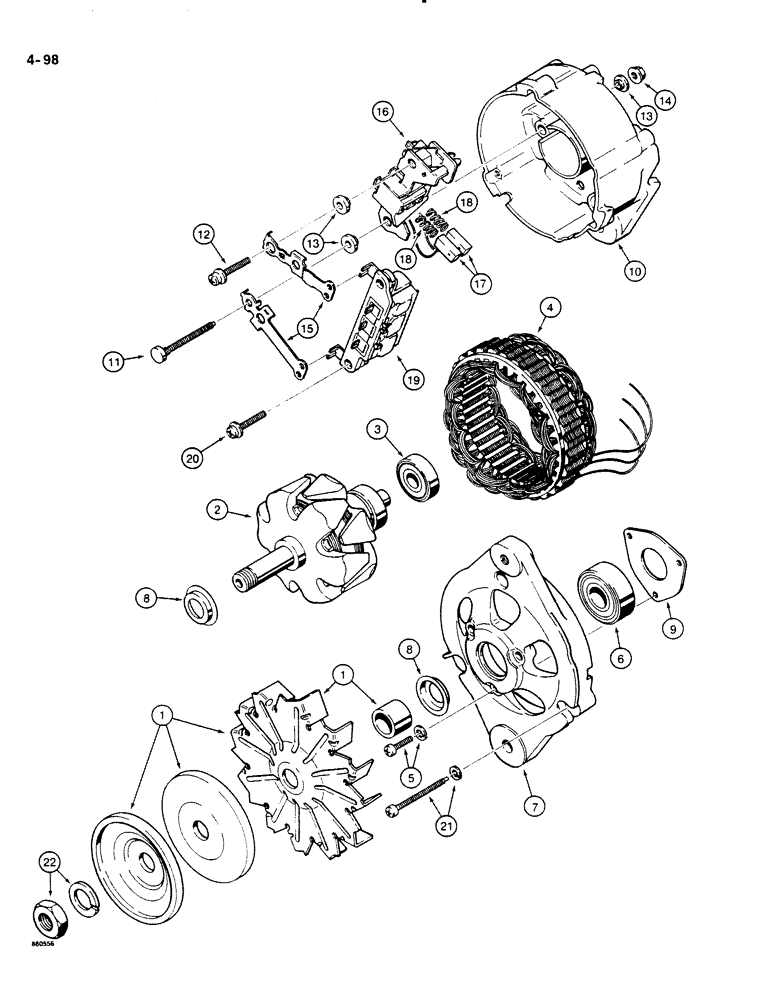

Запчасти Case DH4B (4-098) - ALTERNATOR - N9799 (04) - ELECTRICAL SYSTEMS

N9799

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, Mitsubishi No. 34468-18100, used on engine Serial Number 137265 and after, Includes: Ref. 1-22

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

1

N13885

PULLEY

SPARE PART PULLEY ASSEMBLY - alternator

1шт.

N8030

ROTOR ASSY.

ROTOR ASSEMBLY - alternator, Includes: Ref. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

ROTOR - alternator, order N8030 order assembly

1шт.

3

N8033

BEARING

BEARING - rotor

1шт.

4

N8031

STATOR

STATOR - alternator

1шт.

N13886

HOUSING ASSY.

HOUSING ASSEMBLY - alternator, front, Includes: Ref. 5-9

1шт.

5

N8042

SET SCREW

SCREW AND WASHER SET - special, front alternator housing, short

1шт.

6

N13887

BALL BEARING

BEARING - bracket

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - alternator, front

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - bearing

2шт.

9

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - alternator, rear

1шт.

N8035

CONNECTION,ELECTRIC

TERMINAL KIT - alternator

1шт.

11

NSS

NOT SOLD SEPARAT

STUD - regulator mounting, long, Includes: Ref. 12-15

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special, regulator mounting, short

1шт.

13

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

3шт.

14

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal

1шт.

15

NSS

NOT SOLD SEPARAT

CLIP - connector

2шт.

N8036

REGULATOR

REGULATOR ASSEMBLY - voltage, Includes: Ref. 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

REGULATOR - voltage, order N8036 regulator assembly

1шт.

17

N8038

BRUSH, COMMUTATOR

BRUSH BRUSH - regulator

2шт.

18

N8039

SPRING

SPRING - brush

2шт.

N8037

RECTIFIER

RECTIFIER ASSEMBLY - alternator, Includes: Ref. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

RECTIFIER - alternator, order N8037 rectifier assembly

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - special, rectifier mounting

2шт.

21

N8041

SET SCREW

SCREW AND WASHER SET - special, front alternator housing bracket long

1шт.

22

N8040

NUT

NUT AND WASHER SET - special, alternator

1шт.
