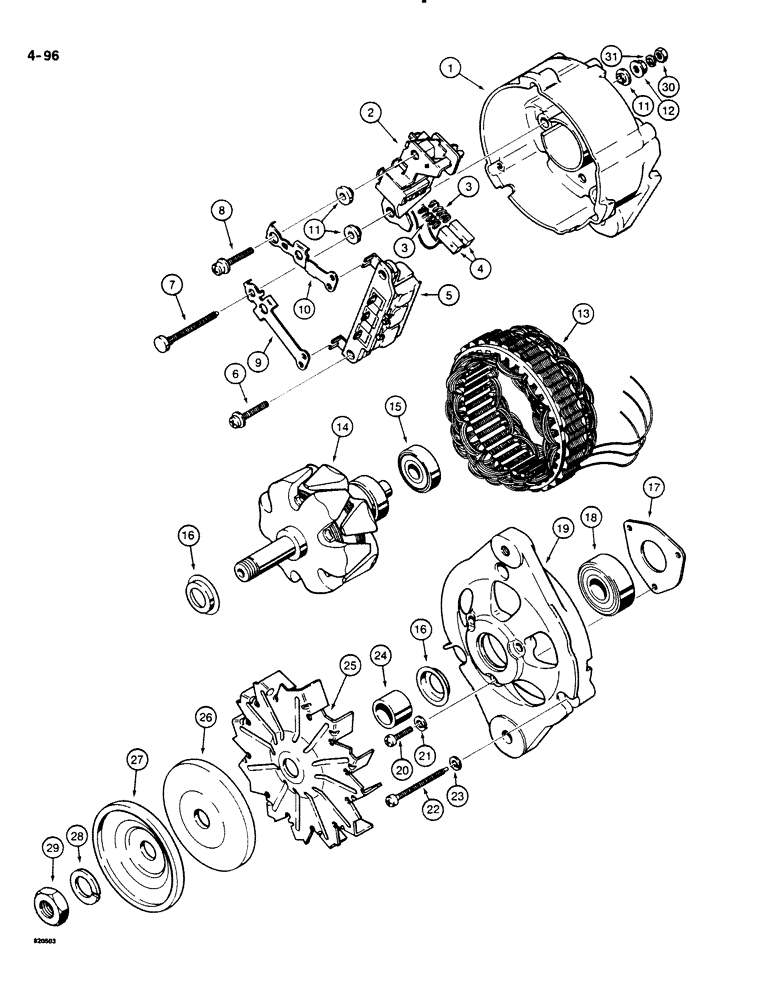

Запчасти Case DH4B (4-096) - ALTERNATOR - H412445 (04) - ELECTRICAL SYSTEMS

H412445

ALTERNATOR

SPARE PART ALTERNATOR ASSEMBLY - engine, Mitsubishi No. 34768-00100, used before Serial Number 147265, Includes: Ref. 1-29

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - rear, slip ring end

1шт.

N8036

REGULATOR

REGULATOR ASSEMBLY - voltage, Includes: Ref. 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

REGULATOR - voltage, order N8036 regulator assembly

1шт.

3

N8039

SPRING

SPRING - brush

2шт.

4

N8038

BRUSH, COMMUTATOR

BRUSH BRUSH - regulator

2шт.

N8037

RECTIFIER

RECTIFIER ASSEMBLY - alternator, Includes: Ref. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

RECTIFIER - alternator, order N8037 rectifier assembly

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - rectifier mounting

2шт.

N8035

CONNECTION,ELECTRIC

TERMINAL KIT - alternator, Includes: Ref. 7-12

1шт.

7

NSS

NOT SOLD SEPARAT

STUD - regulator mounting, long

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - special, regulator mounting, short

1шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR - clip

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - clip

1шт.

11

NSS

NOT SOLD SEPARAT

INSULATOR - terminal, fiber

3шт.

12

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal, with washer

1шт.

13

N8031

STATOR

STATOR ASSEMBLY - alternator

1шт.

N8030

ROTOR ASSY.

ROTOR ASSEMBLY - alternator, Includes: Ref. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR - alternator, order N8030 alternator assembly

1шт.

15

N8033

BEARING

BEARING - rotor, slip ring end

1шт.

N8029

HOUSING ASSY.

FRAME ASSEMBLY - front, drive end, Includes: Ref. 16-21

1шт.

16

NSS

NOT SOLD SEPARAT

CUP - wear

2шт.

17

NSS

NOT SOLD SEPARAT

PLATE - bearing retainer

1шт.

18

N8034

BEARING

BEARING - frame, drive end

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME - front, drive end

1шт.

N8042

SET SCREW

SCREW SET - bearing retainer, Includes: Ref. 20-21

3шт.

20

NSS

NOT SOLD SEPARAT

SCREW - bearing retainer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

N8041

SET SCREW

SCREW SET - frame, Includes: Ref. 22, 23

3шт.

22

NSS

NOT SOLD SEPARAT

SCREW - frame

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

N8028

PULLEY ASSY.

PULLEY AND FAN ASSEMBLY - alternator, Includes: Ref. 24-27

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - fan

1шт.

25

NSS

NOT SOLD SEPARAT

FAN - ventilating

1шт.

26

NSS

NOT SOLD SEPARAT

SHEAVE - inner

1шт.

27

NSS

NOT SOLD SEPARAT

SHEAVE - outer

1шт.

N8040

NUT

NUT SET - sheave and fan retaining, Includes: Ref. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

29

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

30

825-1105

NUT,M5, Cl 8

NUT - hex, 5 mm - 0.8, plated

1шт.

31

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm, plated, if used

1шт.
