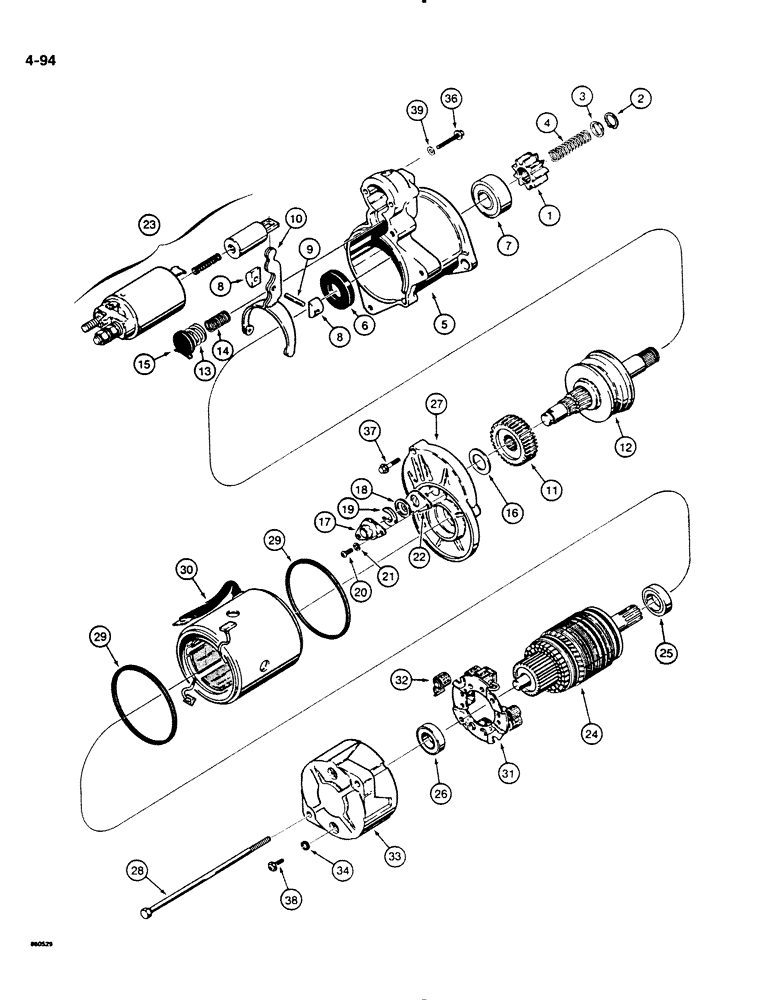

Запчасти Case DH4B (4-094) - STARTER - N8367 (04) - ELECTRICAL SYSTEMS

N8367

STARTING MOTOR

STARTER ASSEMBLY - engine, Mitsubishi No. 34466-20201, used on engine Serial Number 131666 and after, Includes: Refs. 1-39

1шт.

N8378

PINION

GEAR ASSEMBLY - starter, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

PINION GEAR - starter

1шт.

N8383

KIT

- stop, pinion gear, Includes: Ref. 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

SNAP RING - pinion gear

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - pinion gear

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - pinion

1шт.

N8368

BRACKET

HOUSING ASSEMBLY - starter, Includes: Ref. 5-7

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

6

N8061

OIL SEAL

SEAL - oil

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - housing

1шт.

N8045

LEVER ASSY.

LEVER ASSEMBLY - starter, Includes: Ref. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

STOP - spring

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - lever

1шт.

10

NSS

NOT SOLD SEPARAT

LEVER - solenoid

1шт.

11

N8379

GEAR

- reduction

1шт.

12

N8377

SHAFT

PINION SHAFT - starter

1шт.

N8046

SPRING KIT

KIT - spring, Includes: Ref. 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - lever, outer

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - lever, inner

1шт.

15

NSS

NOT SOLD SEPARAT

STOP - spring

1шт.

N8380

KIT

- cover, shaft, Includes: Ref. 16-22

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - gear adjustment

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

18

NSS

NOT SOLD SEPARAT

THRUST WASHER - cover

1шт.

19

NSS

NOT SOLD SEPARAT

RETAINING RING - cover

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - special, cover

2шт.

21

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

22

NSS

NOT SOLD SEPARAT

GASKET - cover

1шт.

23

N8048

SWITCH

- solenoid

1шт.

N8370

ARMATURE

ASSEMBLY - starter, Includes: Ref. 24-26

1шт.

24

NSS

NOT SOLD SEPARAT

ARMATURE - starter

1шт.

25

N8381

BEARING

- splined end

1шт.

26

N8382

BEARING

- closed end

1шт.

27

N8369

BRACKET

- center

1шт.

28

N8050

BOLT

BOLT - special, set of two, rear cover

1шт.

29

N8371

GASKET

- housing

2шт.

30

N8372

HOUSING

- coil

1шт.

N8373

PLATE ASSY.

PLATE ASSEMBLY - brush, Includes: Ref. 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE - brush

1шт.

32

N8384

SPRING

- brush

4шт.

33

N8374

BRACKET

COVER - rear

1шт.

34

N8060

SEALING RING

- rubber

2шт.

35

N8375

SET SCREW

KIT - screw and bolt, starter, Includes: Ref. 36-38

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW - special, starter housing

2шт.

37

NSS

NOT SOLD SEPARAT

BOLT - special, center bracket

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - special, rear cover

2шт.

39

N8376

SET OF WASHERS

WASHER - special, front housing

1шт.
