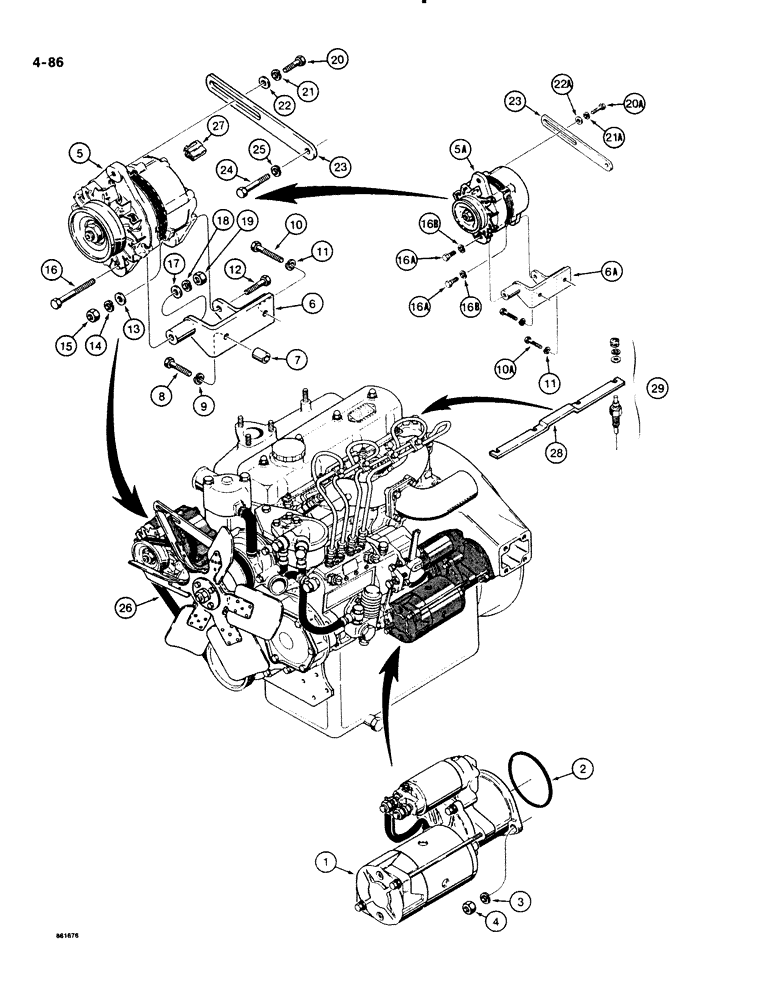

Запчасти Case DH4B (4-086) - STARTER, ALTERNATOR, AND GLOW PLUG MOUNTING (04) - ELECTRICAL SYSTEMS

1

H421099

MOTOR HOUSING

SPARE PART STARTER ASSEMBLY - engine, Mitsubishi No. M003T64172, used before engine Serial Number 131666, parts list Figure 4-90

1шт.

1

N8367

STARTING MOTOR

STARTER ASSEMBLY - engine, Mitsubishi No. M002T56471, used on engine Serial Number 131666 and after, parts list Figure 4-94

1шт.

2

H420208

O-RING,79.5 mm ID

O-RING - starter seal

1шт.

3

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

2шт.

4

525-5100

NUT,M10 x 1.25, Cl 8

NUT - hex, 10 mm - 1.25, plated

2шт.

5

H412445

ALTERNATOR

SPARE PART

1шт.

ALTERNATOR ASSEMBLY - engine, Mitsubishi No. 34768-00100, used before engine Serial Number 137265, parts list Figure 4-96, no longer available, order one (1) each of the following: N9799 alternator, N14102 bracket, 195-2019 washer, 814-12030 bolt 814-10030 bolt, 814-8025 bolt, and 892-1108 washer

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

5a

N9799

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, Mitsubishi No. 34468-18100, used on engine Serial Number 137265 and after, parts list Figure 4-98

1шт.

6

H410829

BRACKET

BRACKET - alternator to engine, used with H412445 alternator

1шт.

6a

N14102

BRACKET

BRACKET - alternator to engine, used with N9799 alternator

1шт.

7

H412452

SPACER

SPACER - bracket, used with H412445 bracket

1шт.

8

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

BOLT - hex head, 12 mm - 1.75 x 35 mm (8.8), plated

1шт.

9

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

1шт.

10a

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

BOLT - hex head, 12 mm - 1.75 x 30 mm (8.8), plated, used with N9799 alternator

1шт.

11

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

1шт.

12

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT - hex, 10 mm - 1.5 x 30 mm (8.8), plated

1шт.

13

H758698

WASHER

WASHER - flat, special

1шт.

14

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

15

825-1110

NUT,M10, Cl 8

NUT, , hex, plated M10, Cl 8

1шт.

16

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

BOLT - hex head, 10 mm - 1.50 x 70 mm (8.8), plated used with H412445 alternator

1шт.

16a

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, , Used with N9799 Alternator Hex, M10 x 30, 8.8

1шт.

16b

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated, used with N9799 alternator

2шт.

17

H758698

WASHER

WASHER - flat, special

1шт.

18

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

19

825-1110

NUT,M10, Cl 8

NUT, , hex, plated M10, Cl 8

1шт.

20

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT, , Used with H412445 alternator Hex, M10 x 1.25 x 20, 8.8, Full Thd

1шт.

20a

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex head, 8 mm - 1.25 x 25 mm (8.8), plated, used with N9799 alternator

1шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated used with H412445 alternator

1шт.

21a

892-1108

LOCK WASHER,M8

LOCK WASHER, , plated, used with N9799 alternator M8

1шт.

22

H758698

WASHER

WASHER - flat, special, used with H412455 alternator

1шт.

22a

195-2019

WASHER

WASHER - flat, 3/8" ID x 3/4" OD x 1/8" thick, special, used with N9799 alternator

1шт.

23

H410837

PLATE

LINK - adjusting

1шт.

24

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

BOLT - hex head, 10 mm - 1.5 x 45 mm (8.8), plated, link to water pump housing

1шт.

25

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

26

H410845

V-BELT

Alternator and Fan

1шт.

27

H420216

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: harness-alternator

1шт.

28

H411306

PLATE

BRACKET - glow plug connecting

1шт.

29

H421255

GLOW PLUG

PLUG - glow

4шт.
