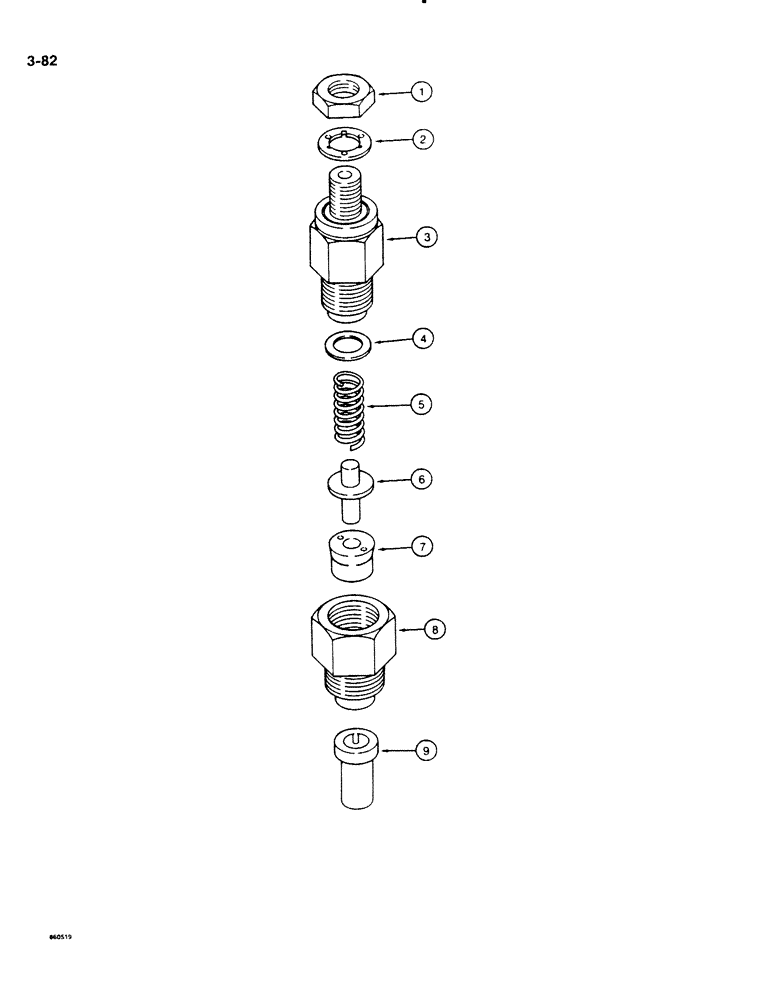

Запчасти Case DH4B (3-82) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

H659508

TUBE

NOZZLE ASSEMBLY - fuel injection, complete nozzle assembly not available, order individual components for service

4шт.

N14200

NOZZLE INJECTION

ASSEMBLY - fuel, complete, if not available order components for service, 20 x 1.5 mm, not shown, Start Serial: 159665

1шт.

H659896

NOZZLE HOLDER

BODY ASSEMBLY - fuel injection nozzle

1шт.

N14238

BRUSH, COMMUTATOR

BODY ASSEMBLY - fuel injection nozzle, not shown, Includes: Ref. 1-8, Start Serial: 159665

1шт.

1

H412254

NUT

- special, retaining

1шт.

1a

H14240

NUT, not shown, Start Serial: 159665

1шт.

2

H412262

PACKING

- body assembly

1шт.

2a

H14241

PACKING, not shown, Start Serial: 159665

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - fuel injection nozzle, order H659896 body assembly

1шт.

4

H412288

BLOCK

SHIM - nozzle, 1.0 mm

1шт.

4a

H14457

SHIM - nozzle, 0.9 mm, not shown, Start Serial: 159665

1шт.

4

H412296

BLOCK

SHIM - nozzle, 1.05 mm

1шт.

4a

H14458

SHIM - nozzle, 1.05 mm, not shown, Start Serial: 159665

1шт.

4

H412304

BLOCK

SHIM - nozzle, 1.10 mm

1шт.

4a

H14459

SHIM - nozzle, 1.20 mm, not shown, Start Serial: 159665

1шт.

4

H412312

SHIM,1.95mm Thk

Nozzle 1.95mm Thk

1шт.

4a

N14242

WASHER

SHIM - nozzle, 1.625 mm, not shown, Start Serial: 159665

1шт.

4a

H14460

SHIM - nozzle, 1.95 mm, not shown, Start Serial: 159665

1шт.

5

H412320

SPRING

- nozzle pressure

1шт.

5a

H14243

SPRING - nozzle pressure, not shown, Start Serial: 159665

1шт.

6

H412338

PIN

SEAT - nozzle pressure spring

1шт.

6a

H14244

SEAT, not shown, Start Serial: 159665

1шт.

7

H412346

SPACER

- nozzle

1шт.

7a

H14245

SPACER, not shown, Start Serial: 159665

1шт.

8

H412353

NUT

- nozzle retaining

1шт.

8a

H14246

NUT, not shown, Start Serial: 159665

1шт.

9

H659904

NOZZLE INJECTION

TIP ASSEMBLY - nozzle

1шт.

9a

H14239

TIP ASSEMBLY - nozzle, not shown, Start Serial: 159665

1шт.
