(3-80) - FUEL FILTER, SPIN-ON TYPE ELEMENT

Запчасти Case DH4B (3-80) - FUEL FILTER, SPIN-ON TYPE ELEMENT (03) - FUEL SYSTEM

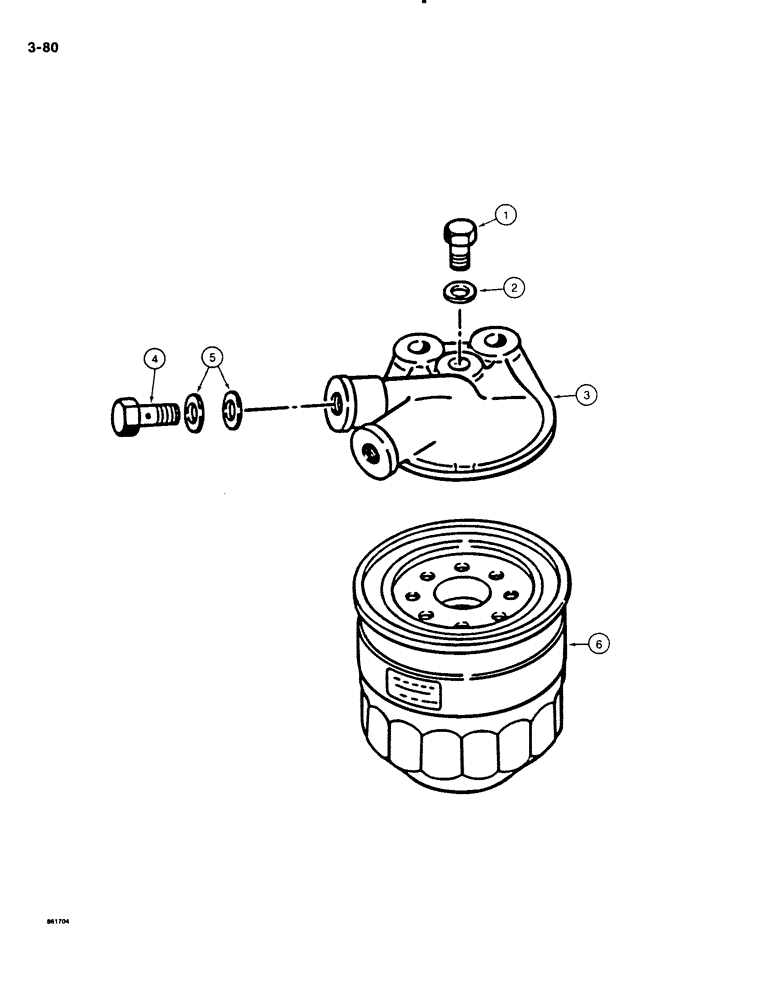

Схема запчастей Case DH4B - (3-80) - FUEL FILTER, SPIN-ON TYPE ELEMENT (03) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H669275

FILTER ASSY

FILTER ASSEMBLY - fuel, spin-on type element, Includes: Ref. 1-6

1шт.

1

H411256

PLUG

- hex head, filter head

1шт.

2

H411249

GASKET

WASHER - special, sealing, fuel filter

1шт.

3

N14096

COVER

HEAD - fuel filter (Replaces N14108)

1шт.

4

H412429

BANJO BOLT

BOLT - special, fitting

2шт.

5

H421537

WASHER

- special, sealing

4шт.

6

H669283

ELEMENT

- fuel filter

1шт.
