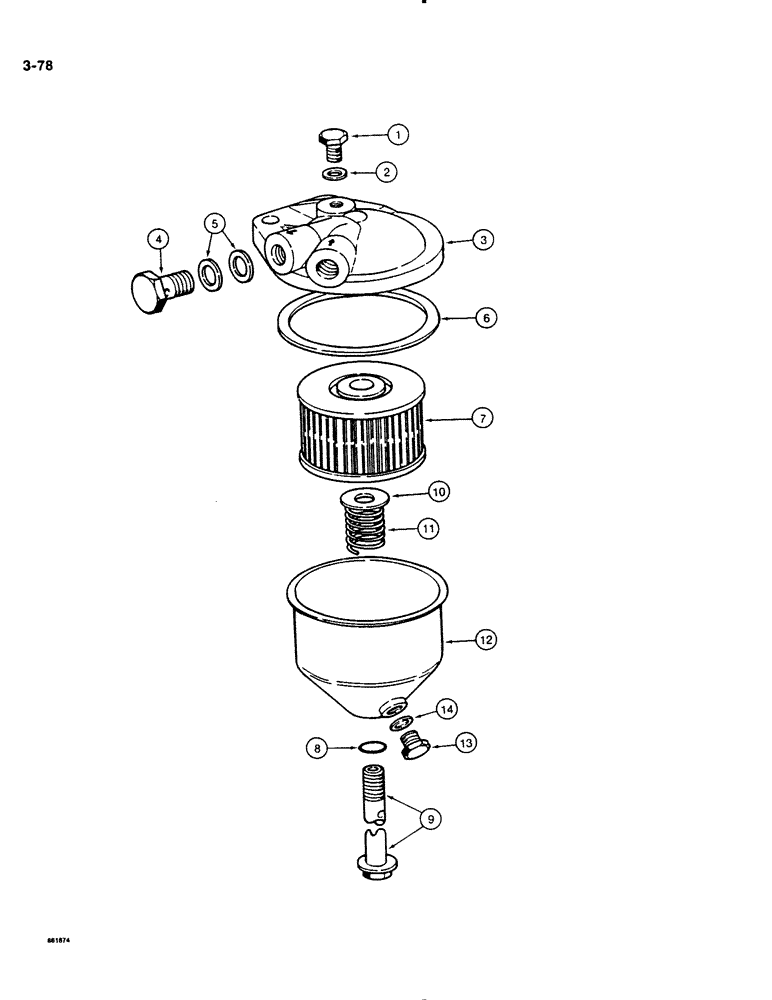

Запчасти Case DH4B (3-78) - FUEL FILTER, BOLT-ON TYPE ELEMENT (03) - FUEL SYSTEM

H659516

FILTER, FUEL

FILTER ASSEMBLY - fuel, bolt-on type element, Includes: Ref. 1-14

1шт.

1

H411256

PLUG

- hex head, filter head

1шт.

2

H411249

GASKET

WASHER - special, sealing, fuel filter head

1шт.

3

H412361

COVER

HEAD - fuel filter

1шт.

4

H412429

BANJO BOLT

BOLT - special, fitting

2шт.

5

H421537

WASHER

- special, sealing

4шт.

H659524

FILTER CARTRIDGE

ELEMENT KIT - fuel filter, Includes: Ref. 6-8

1шт.

6

H412379

GASKET

- fuel filter, Serial Range: element-head

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - fuel filter

1шт.

8

H412387

O-RING

- element housing

1шт.

9

H412411

BOLT

- special, housing retaining

1шт.

10

895-15012

WASHER,M12 x 28 x 2.5

- flat, 12 mm, plated

1шт.

11

H412395

SPRING

- element

1шт.

12

H412403

CASE

HOUSING - fuel filter element

1шт.

13

H411264

PLUG

- hex head, fuel filter drain

1шт.

14

H411249

GASKET

WASHER - special, sealing, fuel filter element housing

1шт.
