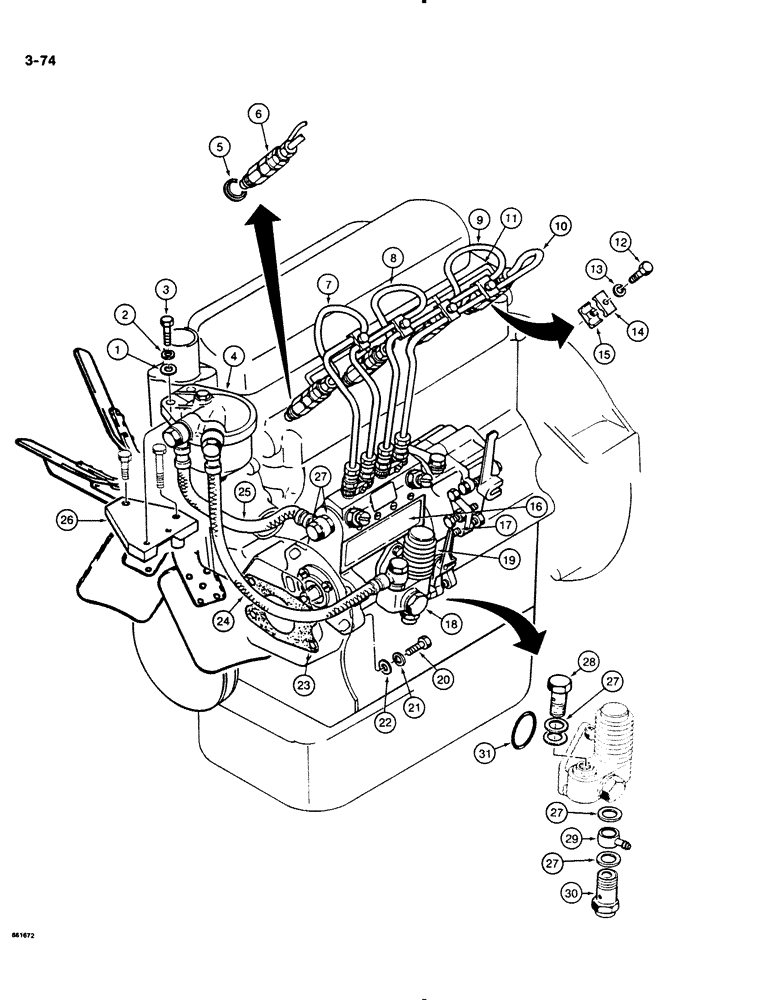

Запчасти Case DH4B (3-74) - FUEL INJECTION SYSTEM, MODELS WITH BOLT-ON FUEL FILTER ELEMENT (03) - FUEL SYSTEM

1

H758680

WASHER

- flat, special

2шт.

2

892-1108

LOCK WASHER,M8

plated M8

2шт.

3

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 30 mm (8.8), plated

2шт.

4

H659516

FILTER, FUEL

FILTER ASSEMBLY - fuel, bolt-on element, parts list figure 3-79

1шт.

5

H411132

GASKET

- nozzle

4шт.

6

H659508

TUBE

NOZZLE ASSEMBLY - fuel injection, parts list figure 3-83

4шт.

7

H411140

PIPE

TUBE - injection pump to No. 1 cylinder, used before engine Serial Number 134624

1шт.

H438612 Injection tube No. 1 After S/N 159664

1шт.

See Figure 3-76 for the correct No. 1 and No. 2 injection pump tubes for engine Serial Number 134624 and after.

1шт.

8

H411165

INJECTION PIPE

TUBE - injection pump to No, 2 cylinder, used before engine Serial Number 134624

1шт.

102819A1 Tube After S/N 159664

1шт.

See Figure 3-76 for the correct No. 1 and No. 2 injection pump tubes for engine Serial Number 134624 and after.

1шт.

9

H411173

FUEL TUBE

TUBE - injection pump to No. 3 cylinder

1шт.

102821A1 Injection Tube No. 3 After S/N 159665

1шт.

10

H411199

FUEL TUBE

TUBE - injection pump to No. 4 cylinder

1шт.

102822A1 Injection Tube No. 4 After S/N 159665

1шт.

11

N14101

FUEL TUBE,4.76 mm DIA x 315, 40 mm L

TUBE - fuel leak-off, used prior to S/N 159665

1шт.

1 tube, fuel leak-off. used prior to S/N 159665.

1шт.

102823A1, 1 tube, fuel leak- off. used S/N 159665 and up.

1шт.

12

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 16 mm (8.8), plated

4шт.

13

892-1106

LOCK WASHER,M6

plated M6

4шт.

14

H411181

CLAMP

CLAM - injection tubes, upper

4шт.

15

H411207

CLAMP

- injection tubes, lower

4шт.

H659870

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, Includes: Ref. 16-19

1шт.

16

NSS

NOT SOLD SEPARAT

PUMP - fuel injection, order H659870 fuel injection pump assembly

1шт.

17

NSS

NOT SOLD SEPARAT

GOVERNOR - fuel injection pump

1шт.

18

108275A1

FEED PUMP

PUMP - fuel feed (Replaces H659888)

1шт.

19

H421388

BELLOWS

PRIMER - hand pump

1шт.

20

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated

4шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

22

H758698

WASHER

- flat, 10 mm, special

4шт.

23

H412221

GASKET

- injection pump

1шт.

24

H411215

FUEL HOSE,9.50 mm ID x 440.00 mm

HOSE - 10" (254 mm) long, fuel filter to injection pump

1шт.

25

H411223

HOSE

- 13" (330 mm) long, fuel filter to fuel feed pump

1шт.

26

H411231

BRACKET

- fuel filter mounting, also uses existing hardware shown on figure 2-51

1шт.

27

H421537

WASHER

- flat, copper, special

6шт.

28

H421545

BOLT

- special, fitting

1шт.

29

H421552

EYE

STEM FITTING - special, fuel feed pump

1шт.

30

H421560

FILTER

- fuel feed pump

1шт.

31

H421578

O-RING

- fuel feed pump

1шт.
