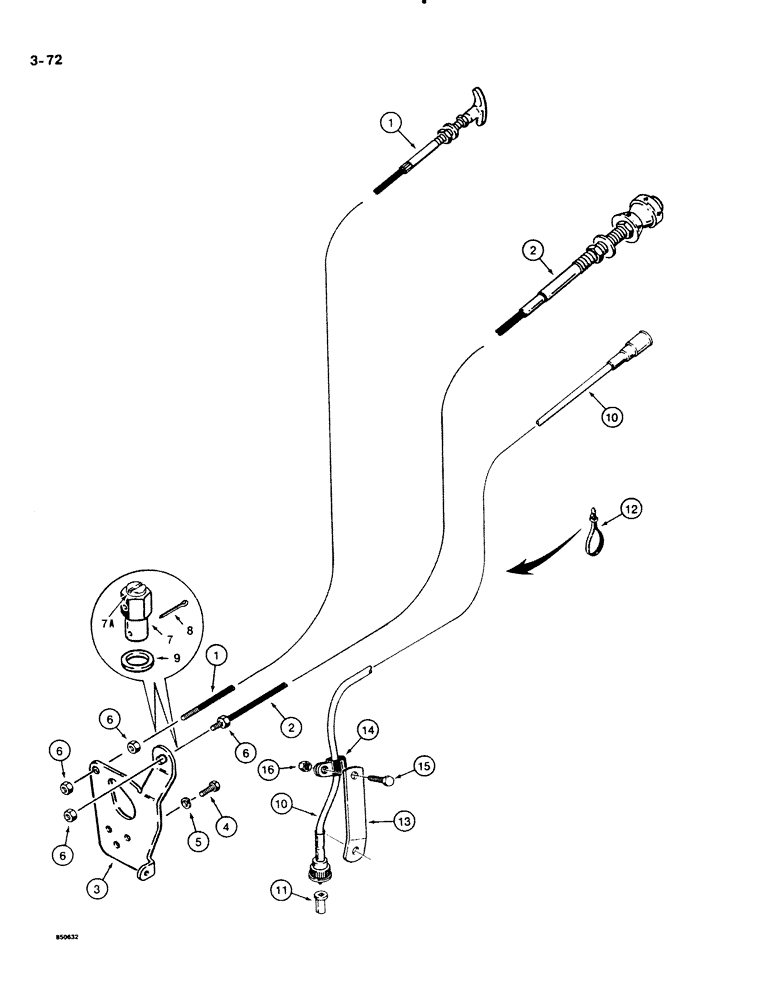

Запчасти Case DH4B (3-72) - THROTTLE AND ENGINE CONTROLS (03) - FUEL SYSTEM

1

H671123

CABLE

- fuel shut off

1шт.

2

H431817

CABLE PULLING GRIP

CABLE - throttle

1шт.

3

H431056

BRACKET

- cable

1шт.

4

814-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 14 mm (8.8), plated

3шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8 " - 24 NF, plated

4шт.

7

H327494

JOINT TURNING

STOP - wrie

2шт.

7a

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- pan head, No. 10 - 32 NF x 3/4" (used in stop)

2шт.

8

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

9

195-518

WASHER,1/4", SAE

- flat, 1/4". plated

2шт.

10

H413591

CABLE PULLING GRIP

CABLE - tachometer drive

1шт.

11

H421081

ADAPTER

- tachometer, Serial Range: cable-engine

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

H433806

BRACKET

SUPPORT - tachometer cable to right-hand side of engine

1шт.

14

49838

CLAMP

- tachometer cable

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.
