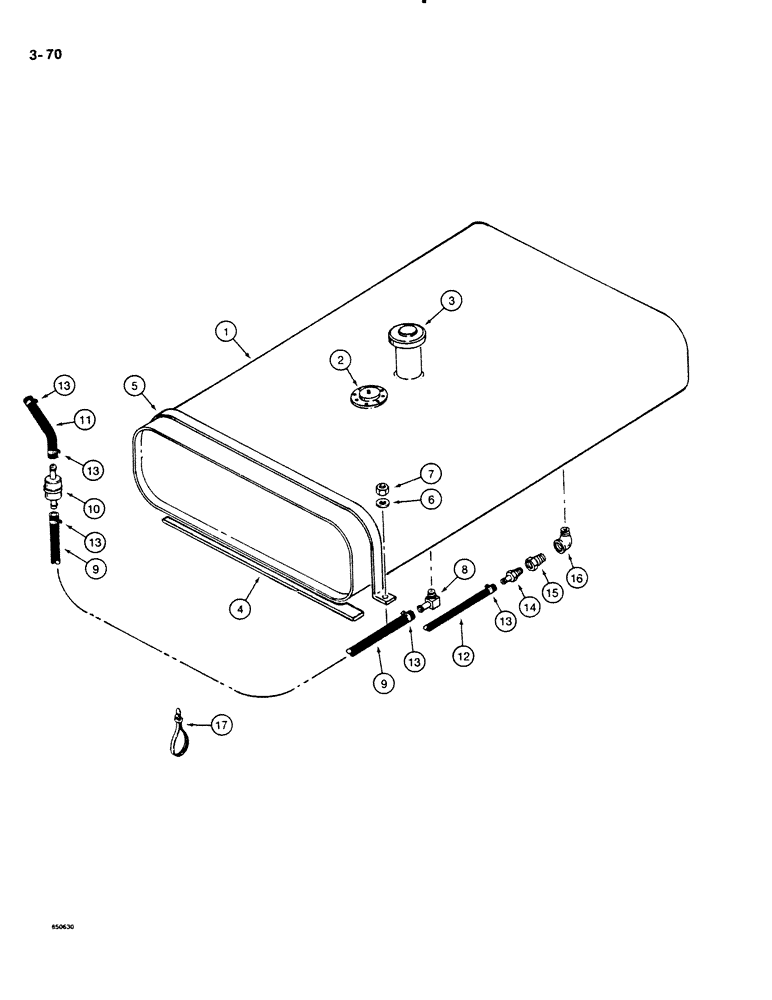

Запчасти Case DH4B (3-70) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

H661801

FUEL TANK

ASSEMBLY - trencher, Includes: Ref. 2, 3

1шт.

2

H423756

SENDER UNIT

GAUGE - fuel, includes gasket and screw

1шт.

3

H151274

CYLINDER END CAP

CAP - fuel tank

1шт.

4

REF

INSTRUCTION

STRIP - insulation, fuel tank, 23" (584 mm) long, cut from H10363 bulk strip, see below

2шт.

5

H373449

STRAP

- fuel tank

2шт.

6

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

8

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree, tank outlet

1шт.

9

H416354

FUEL HOSE,7.90 mm ID x 1800.00 mm, SAE 30R6

Cut from Bulk Hose 7.90 mm ID x 1800.00 mm, SAE 30R6

1шт.

10

H413666

FILTER CARTRIDGE

FILTER - fuel

1шт.

11

H411611

FUEL HOSE,7.90 mm ID x 160.00 mm, SAE 30R2

HOSE - 5/16" (8 mm) ID x 5.9" (150 mm) long, cut H424101 bulk hose, see below

1шт.

12

H404038

FUEL HOSE,4.80 mm ID x 2159.00 mm, SAE 30R3

4.80 mm ID x 2159.00 mm, SAE 30R3

1шт.

13

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

6шт.

14

217-126

FITTING,3/16" Hose Barb x 1/4" Male NPTF

BARB FITTING - straight

1шт.

15

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4" NPT

1шт.

16

221-413

ELBOW,90 Degree, 3/8"-18, NPT

STREET ELBOW - 90 degree, 3/8" NPT

1шт.

17

R38237

STRAP

TIE STRAP - fuel lines

1шт.

H10363

STRIP

- insulation, bulk length, 50 ft. (1524 cm) long, use to make ref. 4

1шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

- Bulk, Use to make Ref. 11 7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.
