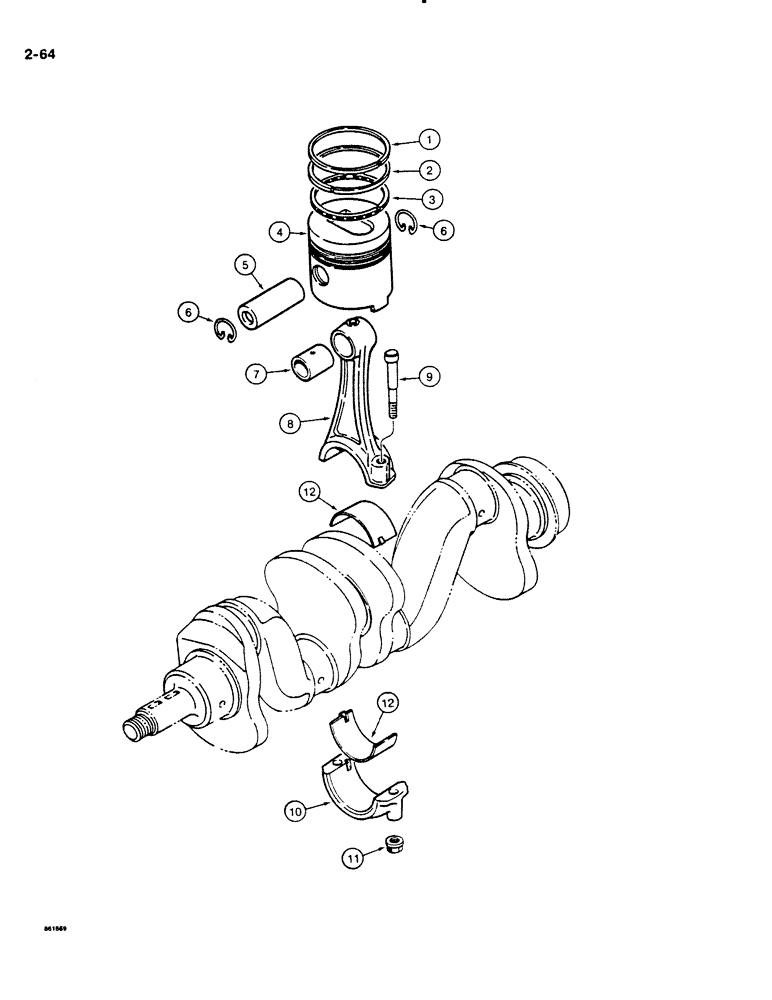

Запчасти Case DH4B (2-64) - PISTONS AND CONNECTING RODS (02) - ENGINE

H664516

SEAL PACKAGE

RING KIT - piston, standard, includes refs. 1-3

4шт.

H664524

RING, SET

RING KIT - piston, oversize, 0.010" (0.25 mm), includes refs. 1-3

4шт.

H664532

RING, SET

RING KIT - piston, oversize, 0.020" (0.50 mm), includes refs. 1-3

4шт.

H664540

PISTON RING SET

RING KIT - piston, oversize, 0.030" (0.75 mm), includes refs. 1-3, Includes: Ref. 1-3

4шт.

1

NSS

NOT SOLD SEPARAT

RING - piston, compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - piston, compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - piston, oil, bottom

1шт.

4

H420018

PISTON

- engine, standard

4шт.

Ref. 4 - 102815A1 Piston after S/N 159665

1шт.

4

H420281

PISTON

- engine, oversize, 0.010" (0.25 mm)

4шт.

4

H420299

PISTON

- engine, oversize, 0.020" (0.50 mm)

4шт.

4

H420307

PISTON

- engine, oversize, 0.030" (0.75 mm)

4шт.

5

H410639

SPLIT PIN/SAFETY PIN

PIN - piston

4шт.

6

H410647

RING, SNAP

SNAP RING - piston

8шт.

H659425

ROD

CONNECTING ROD ASSEMBLY - piston, Includes: Ref. 7-11

4шт.

7

H410654

BUSHING

- rod to piston pin

1шт.

8

NSS

NOT SOLD SEPARAT

CONNECTING ROD - piston, order H659425 connecting rod assembly

1шт.

9

H410662

STEP BOLT,M10 x 1 x 75mm

BOLT - hex head, special, connecting rod

2шт.

10

NSS

NOT SOLD SEPARAT

CAP - connecting rod, order H659425 connecting rod assembly

1шт.

11

H410670

NUT

- hex, special, connecting rod

2шт.

12

H410688

HALF-BEARING, CRANKS

BEARING - connecting rod, upper and lower, standard

8шт.

12

H411355

BEARING

- connecting rod, upper and lower, undersize, .010" (0.25 mm)

8шт.

12

H412007

BEARING

- connecting rod, upper and lower, undersize, 0.020" (0.50 mm)

8шт.

13

H412015

BEARING

- connecting rod, upper and lower, undersize, 0.030" (0.75 mm)

8шт.
