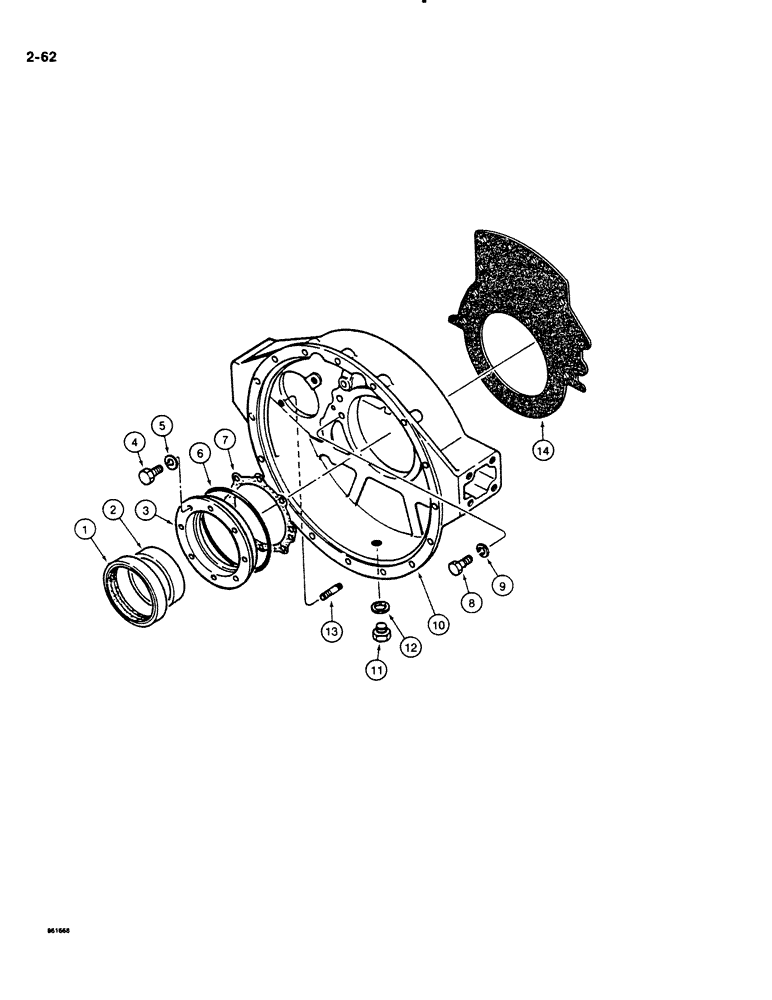

Запчасти Case DH4B (2-62) - FLYWHEEL HOUSING (02) - ENGINE

N9658

OIL SEAL

SEAL ASSEMBLY - oil, flywheel housing, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - oil, flywheel housing, order N9658 seal assembly

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal, order N9658 seal assembly, if used

1шт.

3

H411975

CASE

- oil seal

1шт.

4

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

8шт.

5

892-1106

LOCK WASHER,M6

plated M6

8шт.

6

H410613

O-RING,153.4 mm ID

- oil seal case

1шт.

7

H410480

GASKET

- oil seal case

1шт.

8

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

7шт.

9

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

7шт.

10

N14095

HOUSING

- flywheel

1шт.

11

CASH410605

PLUG,18mm OD x 1.5 Thd Pitch

- hex head, engine oil drain

1шт.

12

133291A1

O-RING

GASKET - sealing, drain plug

1шт.

13

H758789

STUD

- flywheel housing

2шт.

14

N13663

GASKET

- flywheel, Serial Range: housing-engine

1шт.
