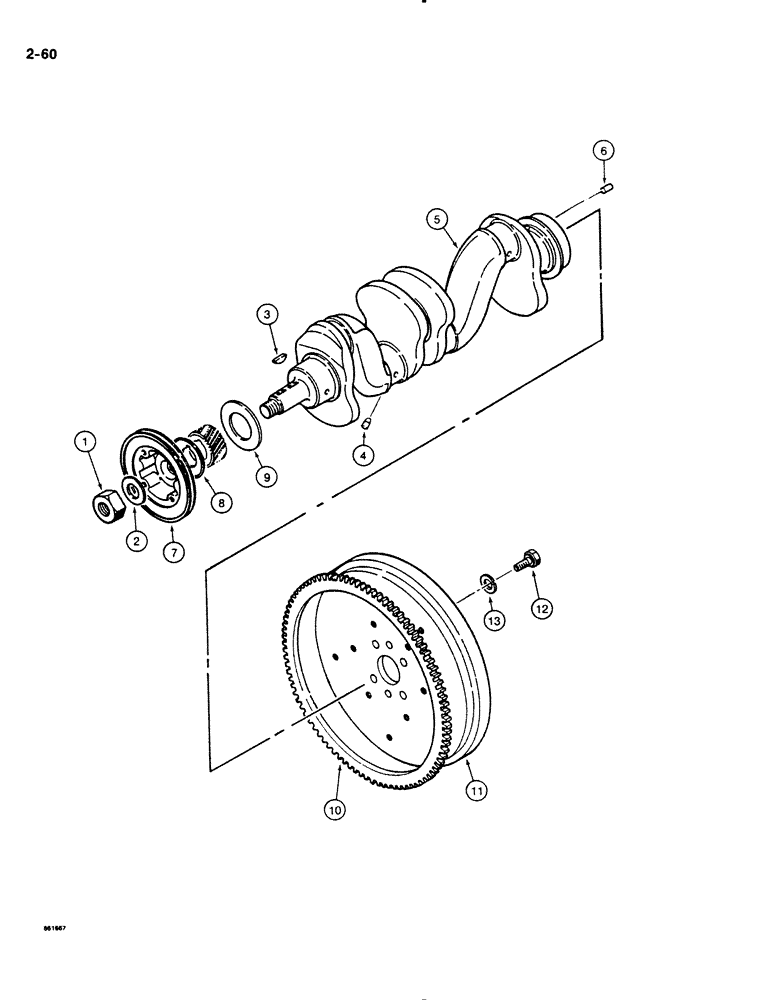

Запчасти Case DH4B (2-60) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

H665745

CRANKSHAFT

ASSEMBLY - flywheel, no longer available, order N9657 crankshaft assembly

1шт.

N9657

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 1-6

1шт.

1

525-5104

NUT,M24 x 1.5, Cl 8

- hex, 24 mm - 1.5, grade 8, special, plated

1шт.

2

H410696

WASHER

- special, crankshaft

1шт.

3

H758748

KEY

WOODRFUFF KEY - special, crankshaft

2шт.

4

H412023

PLUG

- crankshaft

4шт.

5

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine, order N9657 crankshaft assembly

1шт.

6

H758714

DOWEL

PIN -, Serial Range: crankshaft-flywheel

2шт.

7

H410704

PULLEY

- crankshaft, used before engine Serial Number 133592

1шт.

7

N9340

PULLEY

- crankshaft, used on engine Serial Number 133592 and after

1шт.

8

H410712

PLATE

- baffle

1шт.

9

H410720

PLATE, THRUST

THRUST PLATE - crankshaft gear

1шт.

H659441

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 10, 11

1шт.

10

N13487

GEAR, RING

GEAR - flywheel

1шт.

11

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine, order H659441 flywheel assembly

4шт.

12

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 35 mm (8.8), plated

4шт.

13

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

4шт.
