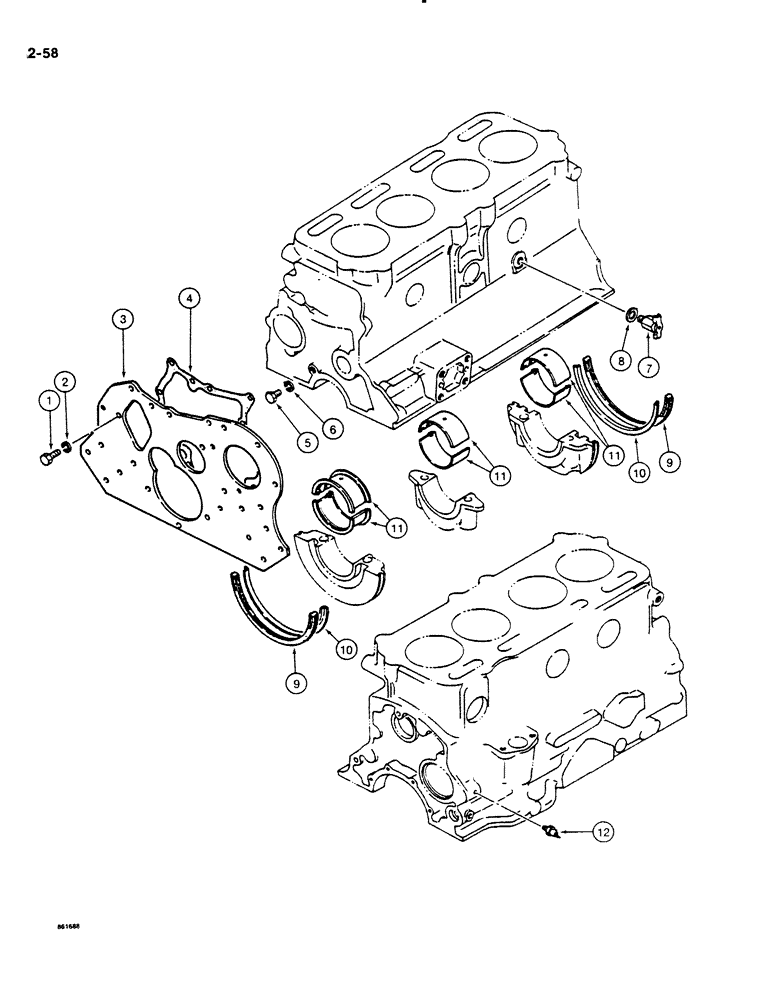

Запчасти Case DH4B (2-58) - MAIN BEARINGS, SEALS, AND GASKETS (02) - ENGINE

1

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

2шт.

2

892-1108

LOCK WASHER,M8

plated M8

2шт.

3

H411850

PLATE

- cylinder block, front

1шт.

4

H411868

GASKET

- front plate

1шт.

5

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

plated Hex, M8 x 12, 8.8, Full Thd

1шт.

6

892-1108

LOCK WASHER,M8

plated M8

1шт.

7

H410449

PLUG, DRAIN

VALVE - cylinder block drain

1шт.

8

H758771

GASKET

- drain valve

1шт.

9

H410456

GASKET

SEAL - front and rear bearing caps

2шт.

10

H410464

RETAINER

- seal

2шт.

11

H410472

PACKAGE

MAIN BEARING - set, standard size

1шт.

11

H659565

BEARING SET

MAIN BEARING - set, undersize, 0.010" (0.25 mm)

1шт.

11

H411876

KIT

MAIN BEARING - set, undersize, 0.020" (0.50 mm)

1шт.

11

H411884

KIT

MAIN BEARING - set, undersize, 0.030" (0.75 mm)

1шт.

12

H411892

SWITCH

- oil pressure indicator, see figure 4-103 for wiring harness

1шт.
