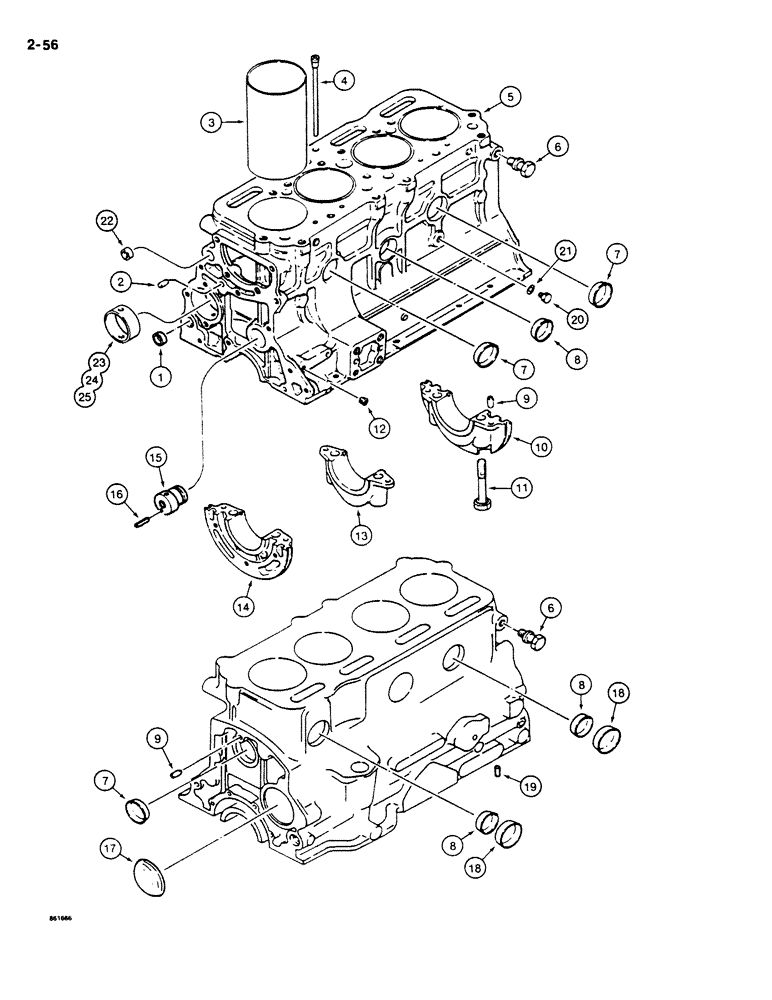

Запчасти Case DH4B (2-56) - CYLINDER BLOCK (02) - ENGINE

H661041

CRANKCASE

BLOCK ASSEMBLY - cylinder, used before engine Serial Number 135001, no longer available, order N14091 block assembly

1шт.

N14091

CRANKCASE

BLOCK ASSEMBLY - cylinder, used on engine Serial Number 135001 and after, Includes: Ref. 1-25

1шт.

1

H411751

CAP

PLUG - cup-type, cylinder block, end, lower

2шт.

2

H410399

DOWEL

PIN - special, cylinder block to front cover

2шт.

3

H410407

SLEEVE

- cylinder, standard

4шт.

3

H411330

SLEEVE

- cylinder, oversize

4шт.

4

H410415

PIPE,144 mm L

TUBE - oil, cylinder block to cylinder head

1шт.

5

N13490

CRANKCASE

BLOCK - cylinder, bare, used before engine Serial Number 135001

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, bare, used on engine Serial Number 135001 and after, order N14091 block assembly

1шт.

6

H411819

BOLT AND NUT

BOLT - special, engine lift

2шт.

7

H411827

CAP

PLUG - cup-type, cylinder block, left-hand side, outer

3шт.

8

H411835

CAP

PLUG - cup-type, cylinder block, left-hand, center and right-hand, inner

3шт.

9

H758706

DOWEL

PIN - special, cylinder block to main bearing caps and cylinder block to flywheel housing

8шт.

10

NSS

NOT SOLD SEPARAT

CAP - bearing, rear, order N14091 cylinder block assembly

1шт.

11

H410423

BOLT

- hex head, special, bearing cap retaining

6шт.

12

221-1849

PLUG

- hex socket head, 1/8" NPT

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - bearing, center, order N14091 cylinder block assembly

1шт.

14

NSS

NOT SOLD SEPARAT

CAP - bearing, front, order N14091 cylinder block assembly

1шт.

H413948

SHAFT

ASSEMBLY - idler, Includes: Ref. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - idler, order H413498 shaft assembly

1шт.

16

H758722

PIN

- idler shaft

1шт.

17

541-65

PLUG

EXPANSION PLUG - cylinder block

1шт.

18

H411843

CAP

PLUG - cylinder block

1шт.

19

H410431

PLUG

- rubber, front and rear bearing caps

2шт.

20

814-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

- hex head, 10 mm, - 1.5 x 16 mm (8.8), plated, if used

1шт.

21

N13794

WASHER

- sealing, if used

1шт.

22

N14093

CAP

PLUG - cup-type, cylinder block, front upper, if used

1шт.

23

H410365

BUSHING

- camshaft, front, see figure 2-55 for camshaft

1шт.

24

H410373

BUSHING

- camshaft, center, see figure 2-55 for camshaft

1шт.

25

H410381

BUSHING

- camshaft, rear, see figure 2-55 for camshaft

1шт.

26

H410449

PLUG, DRAIN

VALVE - cylinder block drain, not included with cylinder block, not shown, see Figure 2-58, if used

1шт.

27

H758771

GASKET

- drain valve, not included with cylinder block, not shown, see Figure 2-58, if used

1шт.

COMPLETE SERVICE ENGINE IS PART #H661777. H.W.

1шт.
