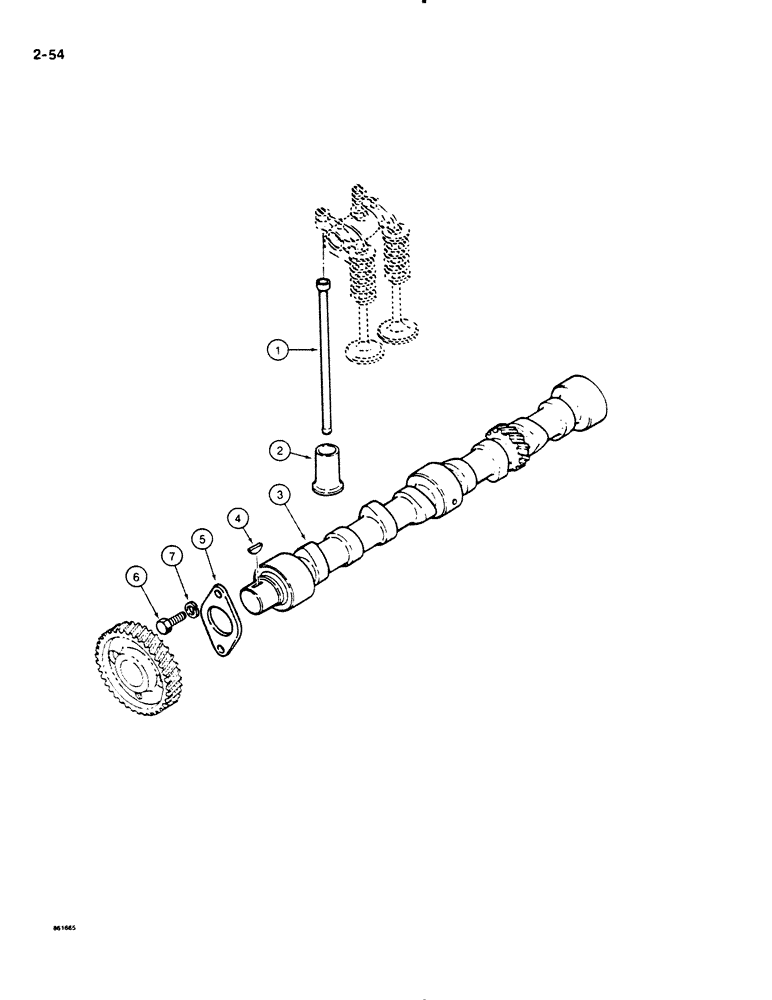

Запчасти Case DH4B (2-54) - CAMSHAFT (02) - ENGINE

1

H410324

PUSH ROD

PUSHROD - valve

8шт.

2

H410332

TAPPET

- valve

8шт.

3

H410340

CAMSHAFT

- engine, see figure 2-57 for camshaft bushings

1шт.

4

H758748

KEY

WOODRUFF KEY - special, camshaft

1шт.

5

H410357

PLATE

- thrust, camshaft

1шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

2шт.

7

892-1108

LOCK WASHER,M8

plated M8

2шт.
