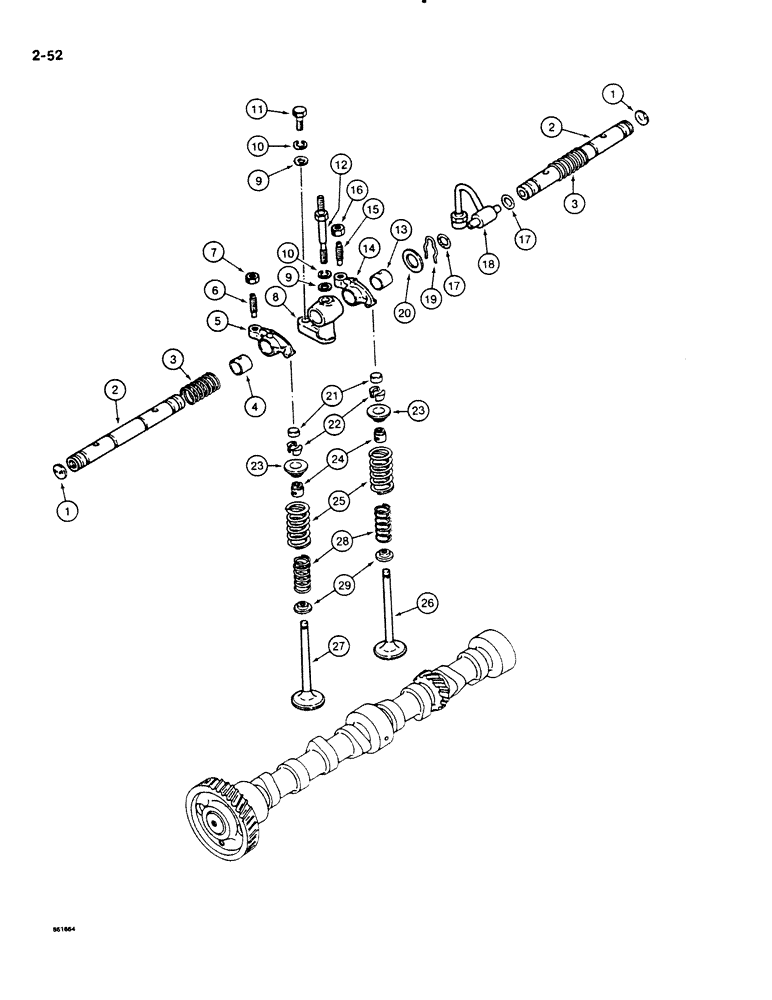

Запчасти Case DH4B (2-52) - VALVE MECHANISM (02) - ENGINE

H659334

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 1, 2

2шт.

1

541-12

PLUG

EXPANSION PLUG - shaft

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - rocker arm, order H659334 shaft assembly

1шт.

3

H410100

SPRING

- rocker arm shaft

2шт.

H659342

LEVER

ROCKER ARM ASSEMBLY - intake, Includes: Ref. 4-7

4шт.

4

H410118

BUSHING

- rocker arm

1шт.

5

NSS

NOT SOLD SEPARAT

ROCKER ARM - intake, order H659342 rocker arm assembly

1шт.

6

H410126

ADJUSTMENT SCREW,M8 x 1.25 x 32mm

- adjusting

1шт.

7

H758805

NUT

- hex, special, rocker arm

1шт.

8

H410134

BRACKET

- rocker arm shaft

4шт.

9

H758680

WASHER

- flat, special

8шт.

10

892-1108

LOCK WASHER,M8

plated M8

8шт.

11

914-8025

BOLT - hex head, 8 mm - 1.25 x 25 mm (8.8), plated

4шт.

12

H410142

BOLT

- special, adjusting

4шт.

H659359

LEVER

ROCKER ARM ASSEMBLY - exhaust, Includes: Ref. 13-16

4шт.

13

H410118

BUSHING

- rocker arm

1шт.

14

NSS

NOT SOLD SEPARAT

ROCKER ARM - intake, order H659342 rocker arm assembly

1шт.

15

H410126

ADJUSTMENT SCREW,M8 x 1.25 x 32mm

- adjusting

1шт.

16

H758805

NUT

- hex, special, rocker arm

1шт.

17

H410159

O-RING

SEAL - rocker arm shaft oil tube

2шт.

18

H410167

PIPE,41, 22 mm L

TUBE - oil, cylinder head to rocker arm shaft

1шт.

19

H410175

RING, SNAP

RETAINER - rocker arm assembly

4шт.

20

H410183

WASHER

- flat, special

4шт.

21

H410191

CAP

- retainer

8шт.

22

H410209

SPLIT PIN

KEEPER - valve

16шт.

23

H410217

RETAINER

- valve, upper

8шт.

24

H410225

SEAL

- valve stem

8шт.

25

H410233

SPRING

- valve, outer

8шт.

26

H410241

VALVE

- exhaust

4шт.

See Figure 2-54 for push rods, tappets, and camshaft.

1шт.

27

H410258

VALVE

- intake

4шт.

See Figure 2-54 for push rods, tappets, and camshaft.

1шт.

28

H410266

SPRING

- valve, inner

8шт.

29

H410274

RETAINER

- valve spring

8шт.
