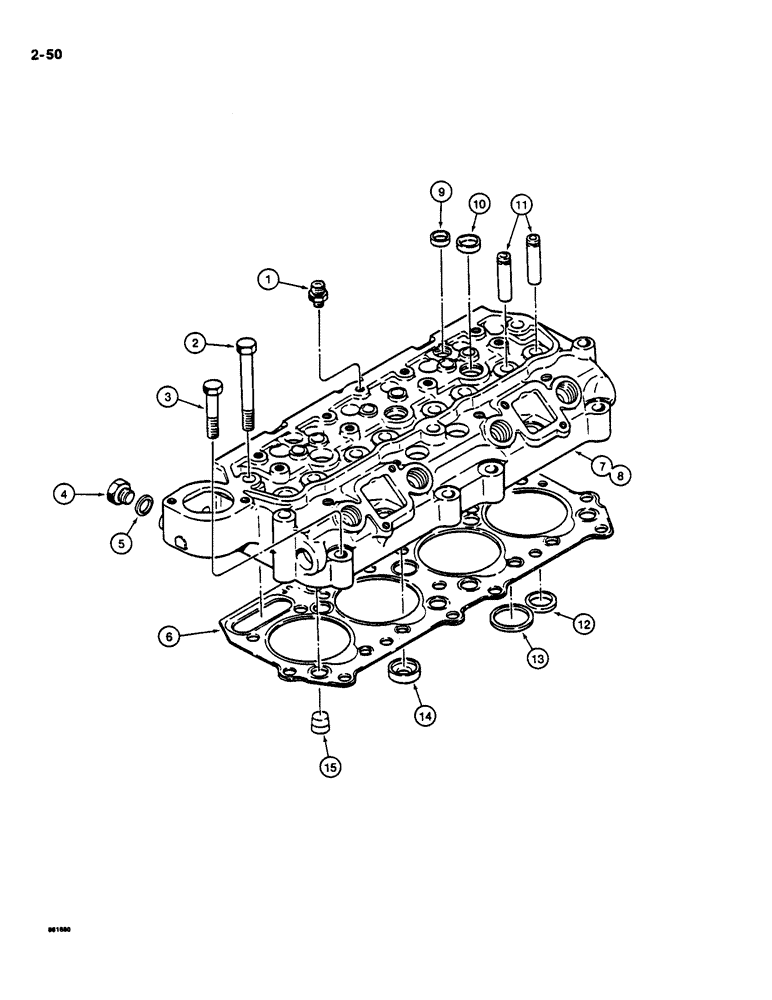

Запчасти Case DH4B (2-50) - CYLINDER HEAD (02) - ENGINE

1

H410092

CONNECTOR, ELEC

ADAPTER - straight, oil supply

1шт.

2

H410084

BOLT

- hex head, 12 mm - 1.75 x 93 mm, special

12шт.

3

H410076

BOLT

- hex head, 12 mm - 1.75 x 59 mm, special

5шт.

4

H411744

PLUG

- hex head, cylinder head

2шт.

5

H411033

GASKET

- plug

2шт.

6

H410068

GASKET

- cylinder head

1шт.

H659326

HEAD (CYLINDER)

CYLINDER HEAD ASSEMBLY - engine, used before engine Serial Number 125363

1шт.

N14090

HEAD ASSY.

CYLINDER HEAD ASSEMBLY - engine, used on engine Serial Number 125363 and after

1шт.

new head is 102827A1 used s/n 159665 and up.

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD - engine, used before engine Serial Number 125363, order H659326 cylinder head assembly

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER HEAD - engine, used on engine Serial Number 125363 and after, order N14090 cylinder head assembly

1шт.

Ref. 8 - 102827A1 Head w/ 20 mm Inj

1шт.

9

H411751

CAP

PLUG - cup-type, small

6шт.

10

H411769

CAP

PLUG - cup-type, large

10шт.

11

H410035

GUIDE

- intake and exhaust valves

8шт.

12

H410043

INSERT

- exhaust valve seat

4шт.

13

H410050

INSERT

- intake valve seat

4шт.

14

H411777

JET

- combustion, standard

4шт.

14

H411785

JET

- combustion, oversize

4шт.

Ref. 14A - 102829A1 Jet combustion used with new head 102827A1

1шт.

15

H420158

INDICATOR

PLUG - water flow direction, if used

1шт.
