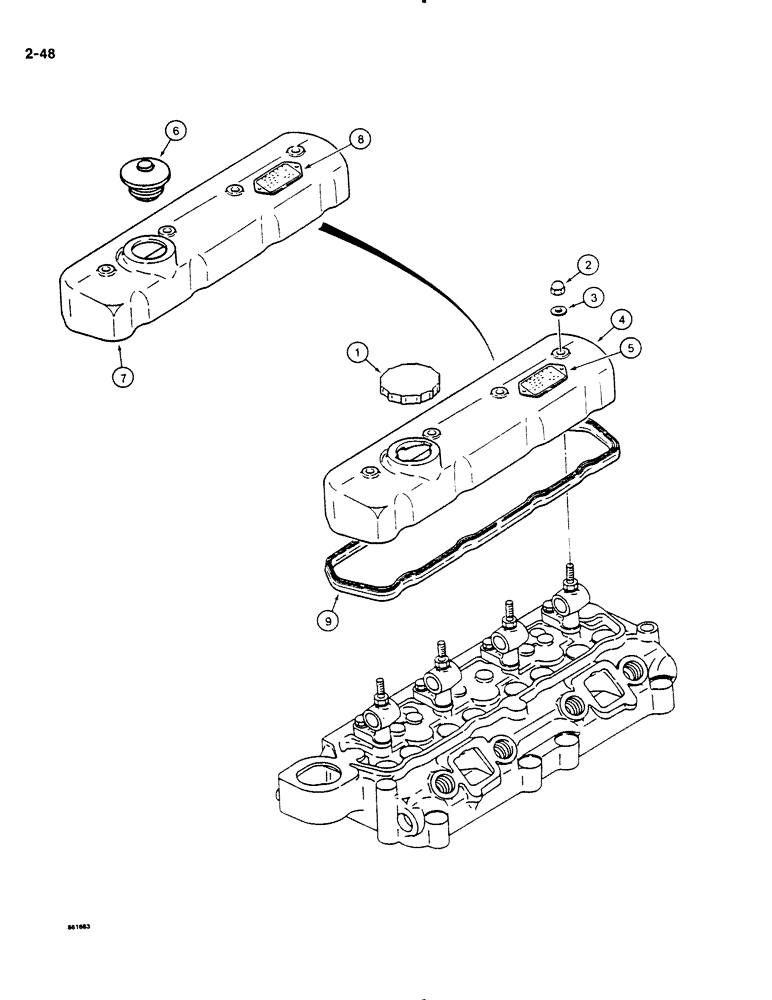

Запчасти Case DH4B (2-48) - CYLINDER HEAD COVER (02) - ENGINE

1

H410282

CYLINDER END CAP

CAP - engine oil fill, used with H664821 cylinder head cover

1шт.

2

H410290

SPECIAL NUT

DOME NUT - special

4шт.

3

H410308

GASKET

WASHER - flat, special sealing

4шт.

H664821

COVER ASSY

COVER ASSEMBLY - cylinder head, used before enigne Serial Number 134940, Includes: Ref. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - cylinder head, order H664821 cover assembly

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve adjustment specifications, firing order, etc.

1шт.

6

N9049

CAP

- engine oil fill, used with N9050 cover assembly

1шт.

N9050

COVER

ASSEMBLY - cylinder head, used on engine Serial Number 139490 and after, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - cylinder head, order N9050 cover assembly

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - valve adjustment specifications, firing order, etc

1шт.

9

H410316

GASKET

- cylinder head

1шт.
