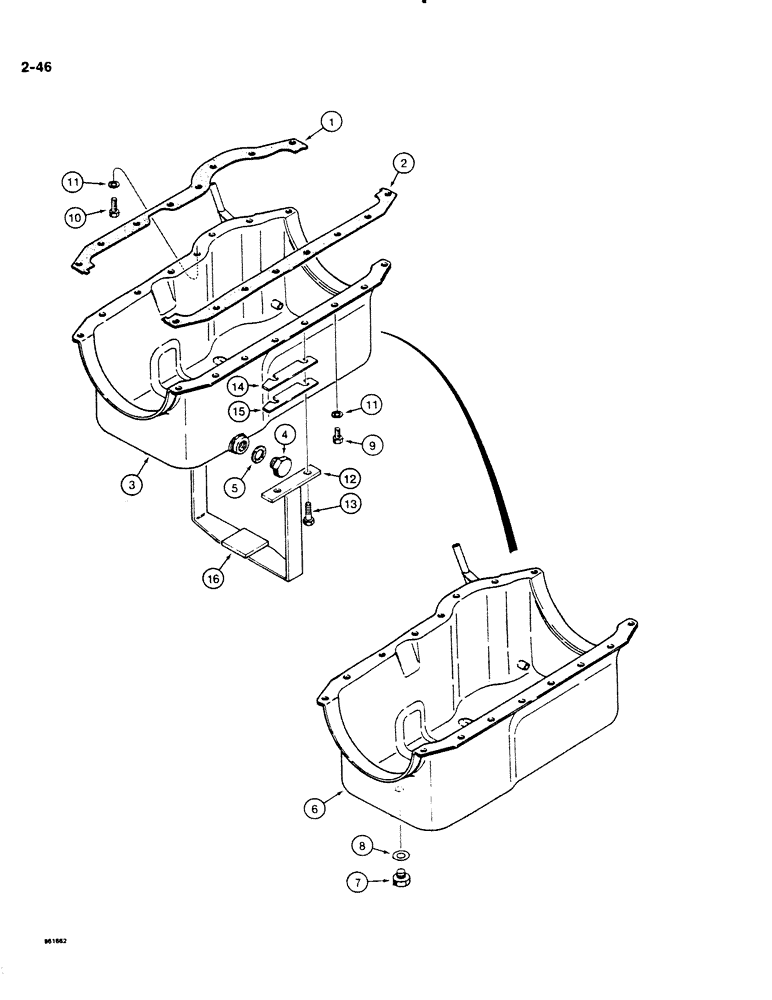

Запчасти Case DH4B (2-46) - ENGINE OIL PAN (02) - ENGINE

1

H410563

OIL PAN GASKET SET

- engine oil pan, right - hand

1шт.

2

H410571

OIL PAN GASKET SET

- engine oil pan, left-hand

1шт.

H410555

PAN, ENGINE OIL

PAN ASSEMBLY - engine oil, side drain, no longer available, order H670562 oil pan assembly, Includes: Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

PAN - engine oil, side drain, no longer available, order H670562 oil pan assembly

1шт.

4

CASH410605

PLUG,18mm OD x 1.5 Thd Pitch

- hex head, engine oil drain, used with H410555 oil pan assembly

1шт.

5

133291A1

O-RING

- sealing, engine oil drain plug

1шт.

H670562

PAN, ENGINE OIL

PAN ASSEMBLY - engine oil, bottom drain, replaces H410555 oil pan assembly, Includes: Ref. 6-8

1шт.

6

NSS

NOT SOLD SEPARAT

PAN - engine oil, bottom drain, order H670562 pan assembly

1шт.

7

N14092

PLUG,Screw, M18 x 1.5 x 12mm

- hex head, engine oil drain, used with H670562 oil pan assembly (Replaces N14104)

1шт.

8

133291A1

O-RING

GASKET - sealing, engine oil drain plug

1шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

15шт.

10

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

892-1108

LOCK WASHER,M8

plated M8

16шт.

12

H672245

BRACKET

- support, oil pan, used with H410555 oil pan assembly, if used

1шт.

Part of Oil Pan Support Kit, P/N H672246

1шт.

13

H433598

BOLT

- hex head, 8 mm - 1.25 x 25 mm, special, used with H410555 oil pan assembly, if used

4шт.

Part of Oil Pan Support Kit, P/N H672246

1шт.

14

H433599

SHIM,0.5mm Thk

(0.20"), Used with H410555 oil pan assembly, if used 0.5mm Thk

1шт.

Part of Oil Pan Support Kit, P/N H672246

1шт.

15

H433608

SHIM,1.0mm Thk

(.040"), Used with H410555 oil pan assembly, if used 1.0mm Thk

1шт.

Part of Oil Pan Support Kit, P/N H672246

1шт.

16

H433600

PAD

- rubber, used with H410555 oil pan assembly, if used

1шт.

Part of Oil Pan Support Kit, P/N H672246

1шт.

17

B17501

LOCTITE

SEALANT - No. 515, 6 ml tube, use to attach rubber pad to support bracket, used with H410555 oil pan assembly, if used

1шт.

Part of Oil Pan Support Kit, P/N H672246

1шт.

H672246

KIT

- oil pan support, includes Refs. 12 thru 17

1шт.
