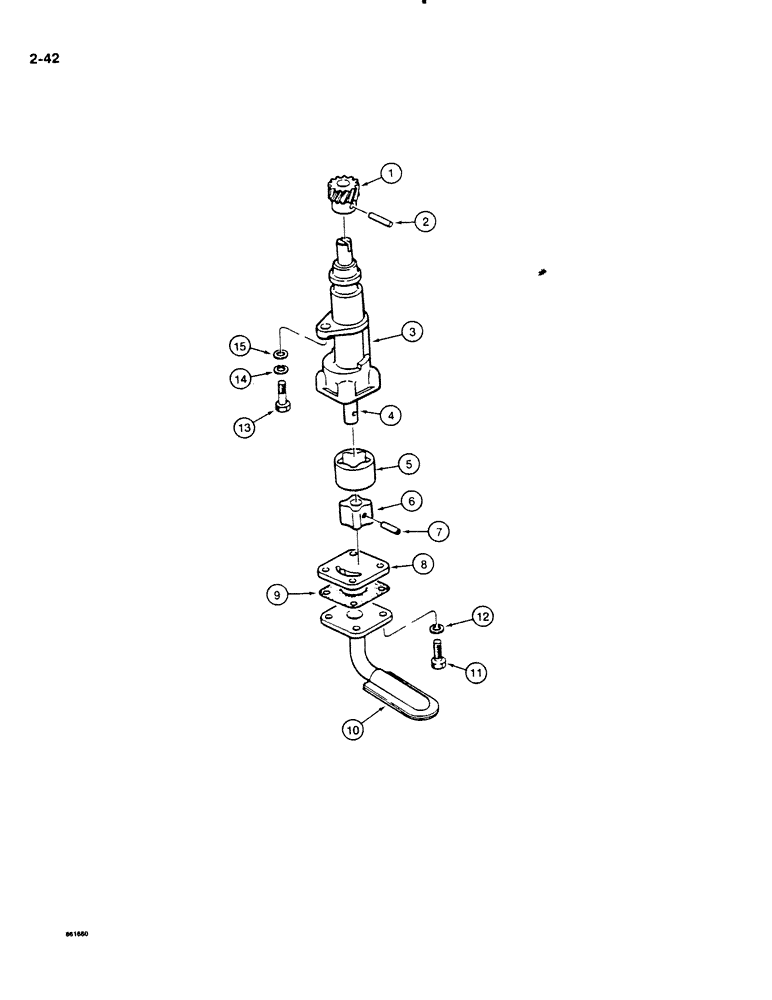

Запчасти Case DH4B (2-42) - ENGINE OIL PUMP (02) - ENGINE

H664458

PUMP

ASSEMBLY - engine oil, Includes: Ref. 1-12

1шт.

1

H420182

GEAR

DRIVE GEAR - oil pump

1шт.

2

H420190

PIN

- drive gear

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - oil pump

1шт.

H664466

ROTOR

ASSEMBLY - oil pump, Includes: Ref. 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - oil pump

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - outer, oil pump

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR - inner, oil pump

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - inner rotor, oil pump

1шт.

8

H412064

COVER

- oil pump housing

1шт.

9

H410936

GASKET

- housing to oil intake

1шт.

10

H410928

STRAINER ASSY.

INTAKE - engine oil, includes strainer

1шт.

11

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 20 mm (8.8), plated

4шт.

12

892-1106

LOCK WASHER,M6

plated M6

4шт.

13

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated

1шт.

14

892-1108

LOCK WASHER,M8

plated M8

1шт.

15

H758680

WASHER

- flat, special

1шт.
