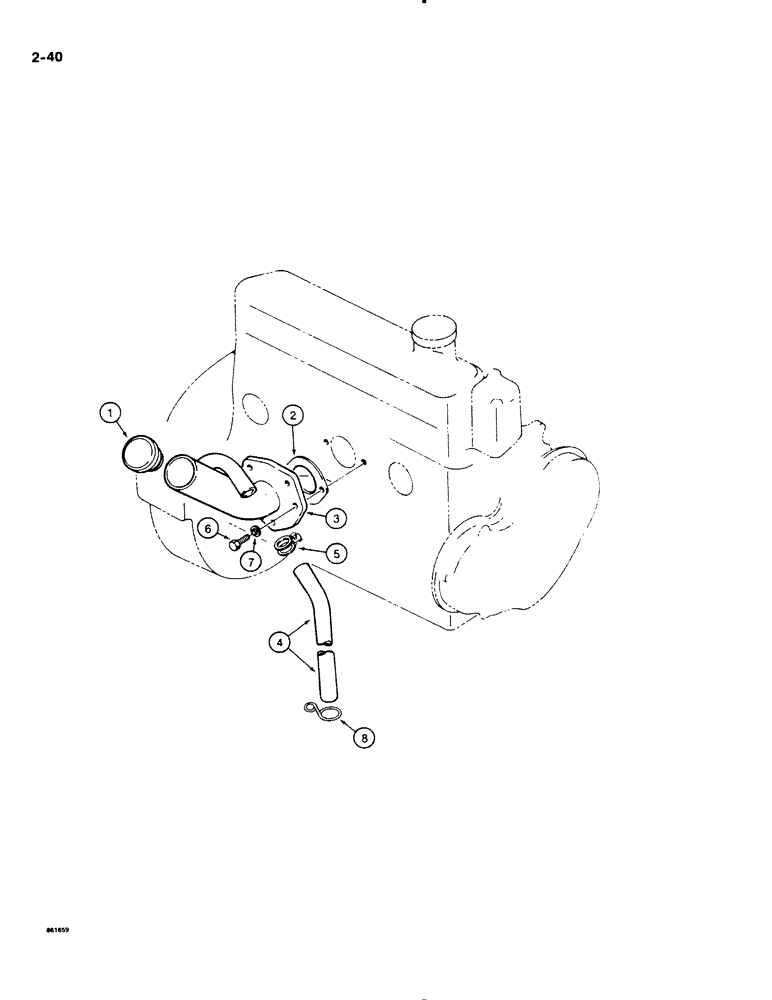

Запчасти Case DH4B (2-40) - ENGINE OIL FILL COMPONENTS (02) - ENGINE

1

N9051

CYLINDER END CAP

CAP - engine oil fill tube

1шт.

2

H410993

GASKET

- engine oil fill tube

1шт.

N9500

NECK FILLER

TUBE ASSEMBLY - engine oil fill, Includes: Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - engine oil

1шт.

4

N9502

TUBE

HOSE - engine oil tube overflow

1шт.

5

N9501

CLAMP

ASSEMBLY - overflow hose, upper, includes hardware

1шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 (8.8), plated

2шт.

7

892-1108

LOCK WASHER,M8

plated M8

2шт.

8

H412106

STAY

CLAMP - overflow hose, lower

1шт.
