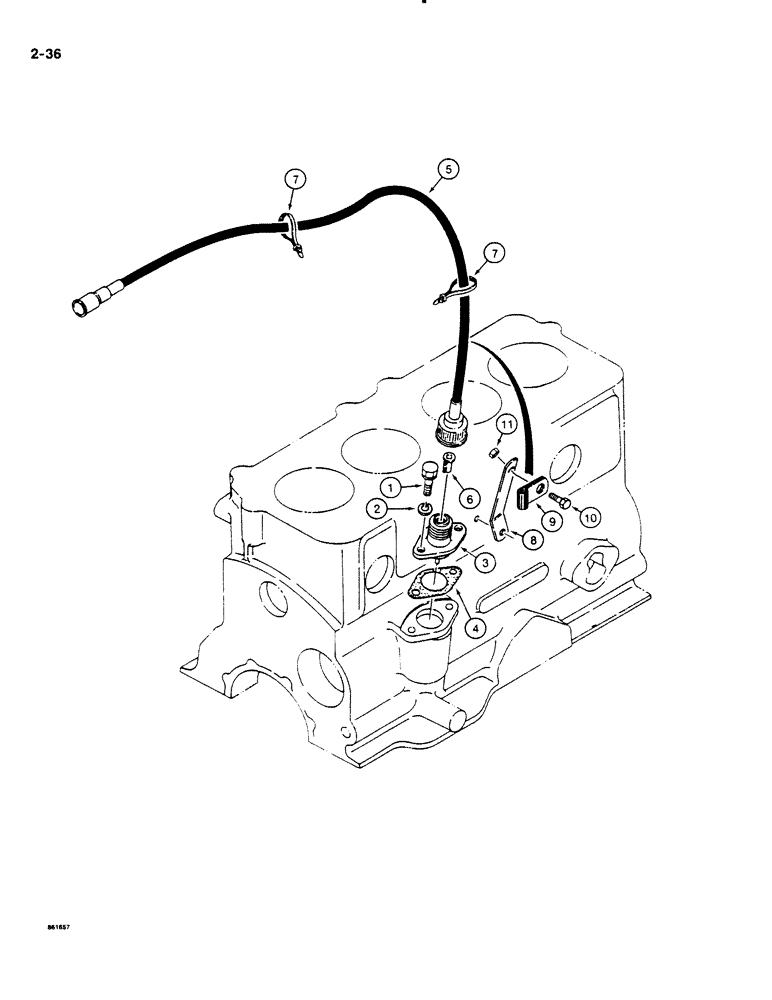

Запчасти Case DH4B (2-36) - TACHOMETER DRIVE (02) - ENGINE

1

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

2

892-1108

LOCK WASHER,M8

plated M8

2шт.

3

H659466

FLANGE ASSY

FLANGE - tachometer drive mounting

1шт.

4

H410811

GASKET

- flange

1шт.

5

H413591

CABLE PULLING GRIP

CABLE - tachometer drive

1шт.

6

H421081

ADAPTER

- tachometer drive cable

1шт.

7

L19337

TIE STRAP - tachometer drive cable

1шт.

8

H433806

BRACKET

SUPPORT - tachometer cable to right-hand side of engine, mounts to engine using existing hardware

1шт.

9

49838

CLAMP

- tachometer cable

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.
