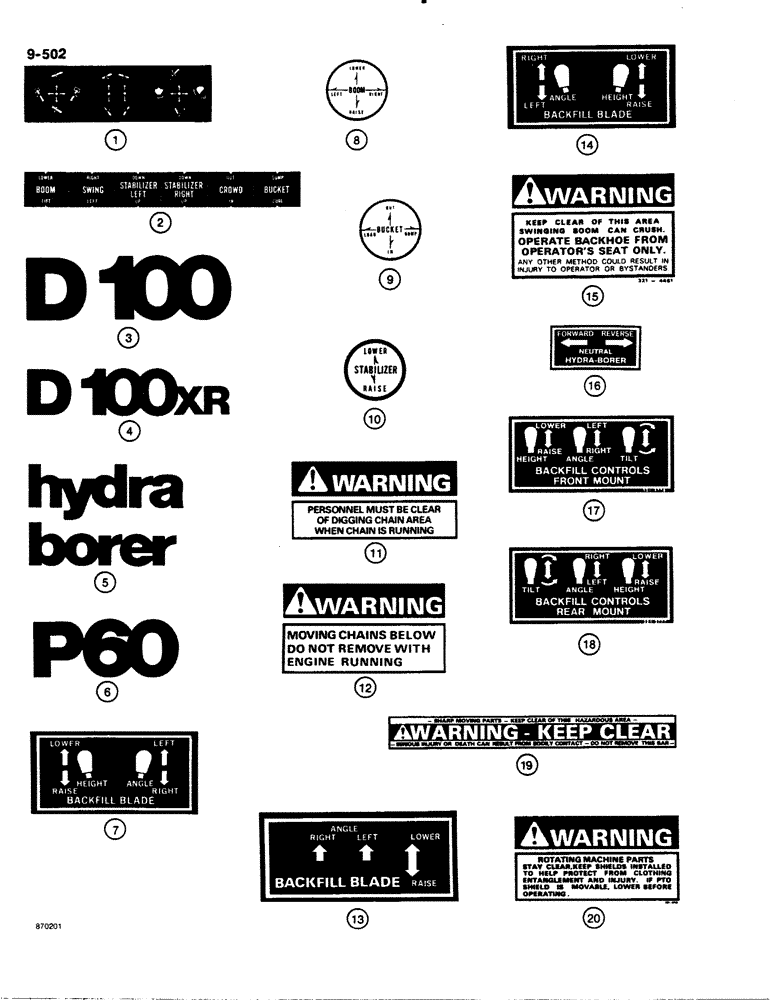

Запчасти Case DH4B (9-502) - DECALS, FRONT AND REAR MOUNTED ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

D123978

DECAL

- backhoe control pattern, used on models with dual lever controls and vertical control valve

1шт.

2

H102749

DECAL

- backhoe controls, used on models with standard backhoe controls

1шт.

3

H427559

DECAL

- D100

2шт.

Part of Decal Kit, P/N H672024

1шт.

4

H427542

DECAL

- D100XR

2шт.

Part of Decal Kit, P/N H672024

1шт.

5

H427880

DECAL

- hydra-borer

1шт.

Part of Decal Kit, P/N H672024

1шт.

6

H427906

DECAL

- P60

2шт.

Part of Decal Kit, P/N H672024

1шт.

7

H433278

DECAL

- backfill blade control pattern, 4-way, front mounted

1шт.

Part of Decal Kit, P/N H672024

1шт.

8

321-3175

DECAL

- boom control, used on models with dual lever backhoe controls and horizontal control valve

1шт.

9

321-3176

DECAL

- bucket control, used on models with dual lever backhoe controls and horizontal control valve

1шт.

10

321-3177

DECAL

- stabilizer control, used on models with dual lever backhoe controls and horizontal control valve

2шт.

11

321-3214

DECAL

- Warning, personnel must be clear of digging chain

3шт.

12

321-3258

ADHESIVE

DECAL - Warning, moving chains below

1шт.

13

321-3993

DECAL

- backfill blade control pattern, 4-way, under plow

1шт.

14

321-4391

DECAL

- backfill blade control pattern, 4-way, rear mounted

1шт.

15

321-4481

DECAL

- Warning, keep clear of this area swinging boom can crush

3-4шт.

16

321-5663

DECAL

- hydra-borer controls

1шт.

17

321-5776

DECAL

- backfill blade control pattern, 6-way, front mounted

1шт.

18

321-5777

DECAL

- backfill blade control pattern, 6-way, rear mounted

1шт.

19

321-6260

DECAL

- Warning, trencher boom

2шт.

20

321-6715

DECAL

- Warning, rotating machine parts

2шт.

H672024

KIT

- decal, includes Refs. 3 - 7. See Figure 9-498 for additional decals that are included in this kit.

1шт.
