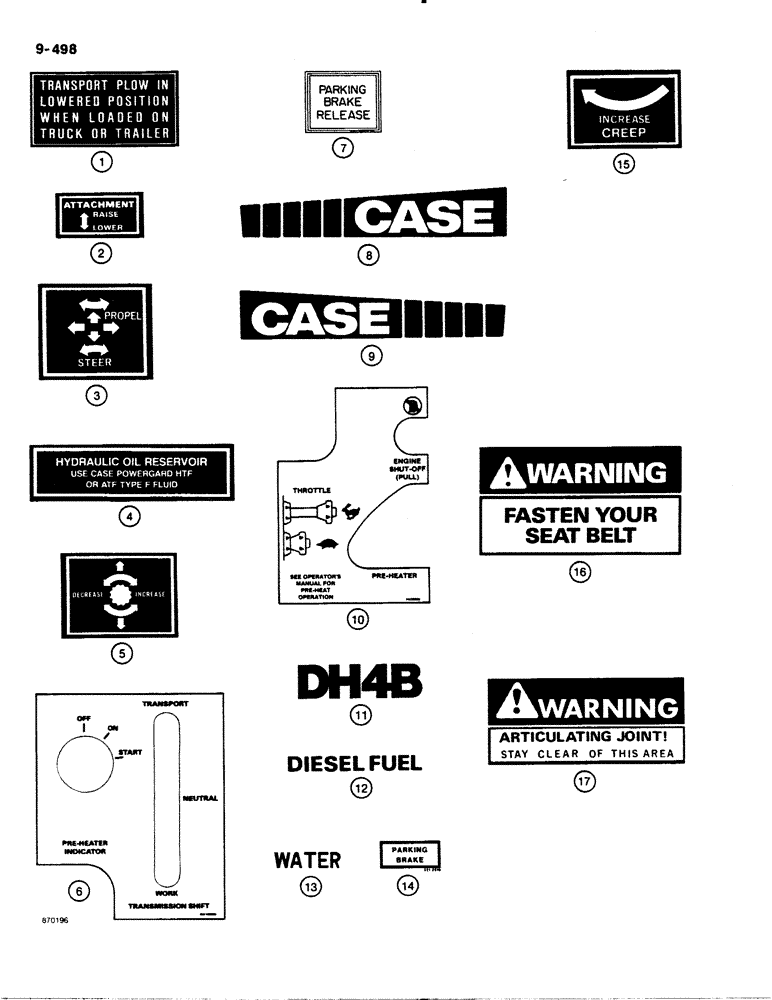

Запчасти Case DH4B (9-498) - DECALS, BASIC UNIT (09) - CHASSIS/ATTACHMENTS

1

H208280

DECAL

- transport position

1шт.

2

H249920

DECAL

- rear attachment control pattern, lower and raise

1шт.

3

H266627

DECAL

- directional control

1шт.

4

H277723

DECAL

- hydraulic oil reservoir, oil type

1шт.

5

H289694

DECAL

- creep control, increase/decrese, used on models with mono-stick

1шт.

Part of Decal Kit, P/N H672024

1шт.

6

H416388

DECAL

- ignition, pre-heater indicator, and transmission shift

1шт.

7

H418020

DECAL

- parking brake release

1шт.

8

H427609

DECAL

- Case, with treads, left-hand

1шт.

See Figure 9-502 for front and rear attachment decals.

1шт.

9

H427617

DECAL

- Case, with treads, right-hand

1шт.

See Figure 9-502 for front and rear attachment decals.

1шт.

10

H432088

DECAL

- throttle, engine shut-off, and pre-heater

1шт.

See Figure 9-502 for front and rear attachment decals.

1шт.

11

H432427

DECAL

- DH4B

2шт.

See Figure 9-502 for front and rear attachment decals.

1шт.

12

321-230

DECAL

- Diesel Fuel

2шт.

13

321-719

DECAL

- water

1шт.

14

321-2519

DECAL

- parking brake, used on models with steering wheel

1шт.

15

321-2989

DECAL

- Increase Creep, used on models with steering wheel

1шт.

See Figure 9-502 for front and rear attachment decals.

1шт.

16

321-3217

DECAL

- Warning, fasten your seat belt

1шт.

17

321-3218

DECAL

- Warning, articulation joint

3шт.

H672024

KIT

- decal, includes 5, 8, 9, 10, 11 and 15. See Figure 9-502 for additional decals that are included in this kit.

1шт.
