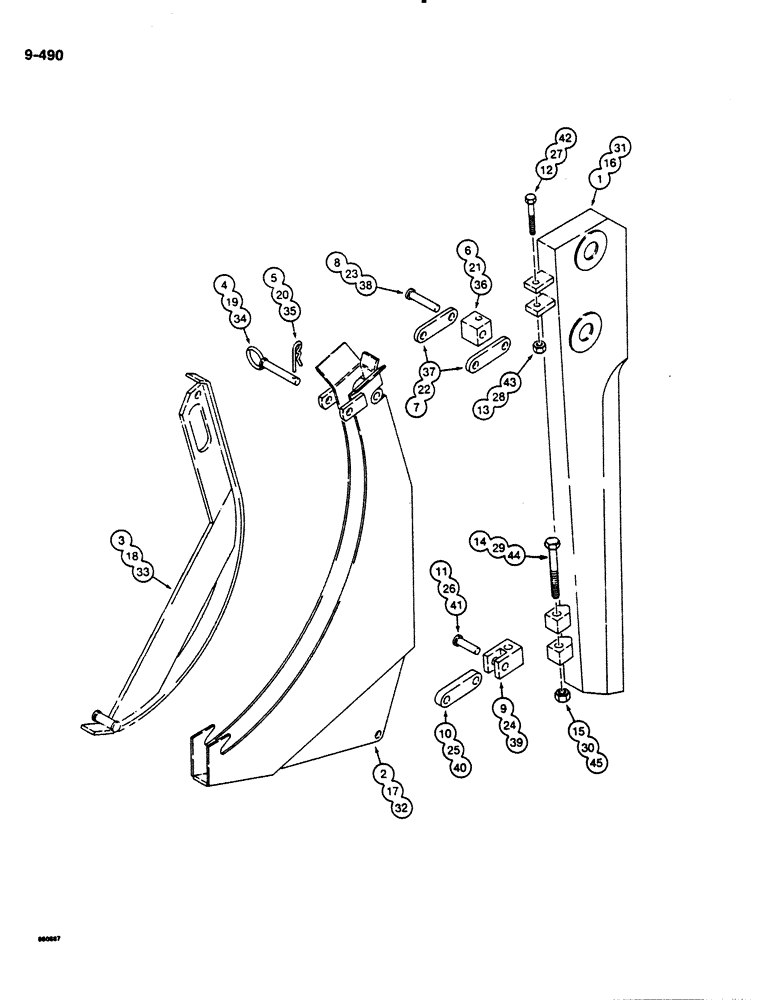

Запчасти Case DH4B (9-490) - ADVANCED ANGLE PLOW BLADES AND CHUTES, 1-1/2" WIDE X 1-1/8" CLEARANCE (09) - CHASSIS/ATTACHMENTS

H936419

BLADE AND CHUTE ASSEMBLY - 1-1/2" (38 mm) wide blade x 18" (457 mm) cover depth x 1-1/8" (29 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 1-15

1шт.

1

H638916

BLADE

- advanced angle, 1-1/2" (38 mm) x 18" (457 mm)

1шт.

2

H638973

CHUTE ASSY.

CHUTE - cable

1шт.

3

H638965

CHUTE ASSY.

GATE - chute

1шт.

4

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

5

H32292

PIN

HAIR PIN - gate pin

1шт.

6

H133751

BLOCK

HINGE - chute, upper

1шт.

7

H133157

DRAG LINK

LINK - chute to blade hinge, upper

2шт.

8

H133801

RIVET

- flat head, 1/2" x 2-1/8", hardened

2шт.

9

H133736

JOINT TURNING

HINGE - chute, lower

1шт.

10

H133165

DRAG LINK

LINK - chute to blade hinge, lower

1шт.

11

H133785

RIVET

- flat head, 1/2" x 1-1/2", hardened

2шт.

12

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

13

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

14

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

15

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

1шт.

H936427

BLADE AND CHUTE ASSEMBLY - 1-1/2" (38 mm) wide blade x 24" (610 mm) cover depth x 1-1/8" (29 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 16-30

1шт.

16

H638924

CHUTE ASSY.

BLADE - advances angle, 1-1/2" (38 mm) x 24" (610 mm)

1шт.

17

H638999

CHUTE ASSY.

CHUTE - cable

1шт.

18

H638981

PANEL ASSY.

GATE - chute

1шт.

19

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

20

H32292

PIN

HAIR PIN - gate pin

1шт.

21

H133751

BLOCK

HINGE - chute, upper

1шт.

22

H133157

DRAG LINK

LINK - chute to blade hinge, upper

2шт.

23

H133801

RIVET

- flat head, 1/2" x 2-1/8", hardened

2шт.

24

H133736

JOINT TURNING

HINGE - chute, lower

1шт.

25

H133165

DRAG LINK

LINK - chute to blade hinge, lower

1шт.

26

H133785

RIVET

- flat head, 1/2" x 1-1/2", hardened

2шт.

27

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

28

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

29

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

30

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

1шт.

H936443

BLADE AND CHUTE ASSEMBLY - 1-1/2" (38 mm) wide blade x 30" (762 mm) cover depth x 1-1/8" (29 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 31-45

1шт.

31

H638932

SCRAPER

BLADE - advanced angle, 1-1/2" (38 mm) x 30" (762 mm)

1шт.

32

H648931

CHUTE ASSY.

CHUTE - cable (Replaces H639013)

1шт.

33

H639005

CHUTE ASSY.

GATE - chute

1шт.

34

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

35

H32292

PIN

HAIR PIN - gate pin

1шт.

36

H133751

BLOCK

HINGE - chute, upper

1шт.

37

H133157

DRAG LINK

LINK - chute to blade hinge, upper

2шт.

38

H133801

RIVET

- flat head, 1/2" x 2-1/8", hardened

2шт.

39

H133736

JOINT TURNING

HINGE - chute, lower

1шт.

40

H133165

DRAG LINK

LINK - chut to blade hinge, lower

1шт.

41

H133785

RIVET

- flat head, 1/2" x 1-1/2", hardened

2шт.

42

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

43

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

44

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

45

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

1шт.
