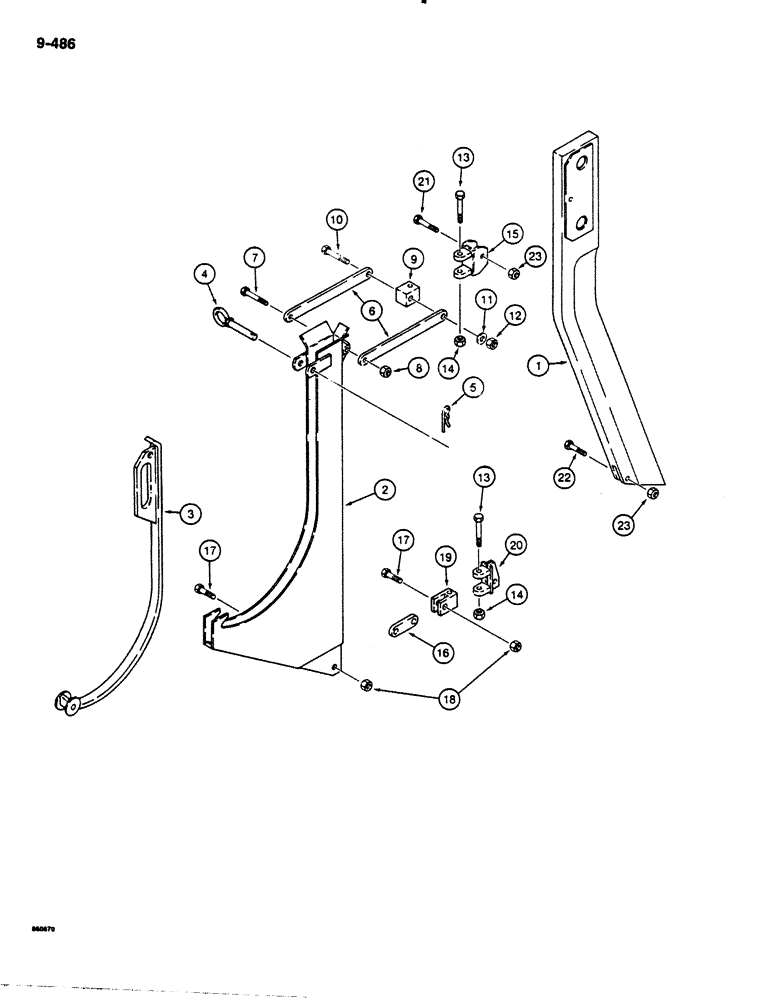

Запчасти Case DH4B (9-486) - BENT PLOW BLADES AND SWIVEL CHUTES, 1" WIDE X 18" X 3/4" CLEARANCE (09) - CHASSIS/ATTACHMENTS

H936393

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 18" (457 mm) cover depth x 3/4" (19 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 1-23

1шт.

1

H639575

BLADE

- 1" (25 mm) x 18" (457 mm)

1шт.

H659011

CHUTE ASSY.

CHUTE ASSEMBLY - with attaching parts, Includes: Ref. 2-23

1шт.

2

H658252

CHUTE ASSY.

CHUTE - cable

1шт.

3

H658294

CHUTE (DOWNWARD)

GATE - chute

1шт.

4

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

5

H32292

PIN

HAIR PIN - gate pin

1шт.

6

H409334

LINK

- chute to blade, upper

2шт.

7

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF 2-1/4", special

1шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

1шт.

9

H133744

BLOCK

HINGE - chute, upper

1шт.

10

H409466

BOLT

- hex head, 1/2" - 20 NF x 2-1/4", special

1шт.

11

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

12

131-168

LOCK NUT,1/2"-20, GA

NUT - hex, self-locking, 1/2" - 20 NF, plated

1шт.

13

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

14

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

15

H535674

BRACKET

- blade, hinge mounting, upper

1шт.

16

H409342

LINK

- chute to blade hinge, lower

1шт.

17

H409474

BOLT

- hex head, 1/2" - 20 NF x 1-1/2", special

2шт.

18

131-168

LOCK NUT,1/2"-20, GA

NUT - hex, self-locking, 1/2" NF, plated

2шт.

19

H150771

BLOCK

HINGE - chute, lower

1шт.

20

H535666

ADAPTER

BRACKET - blade, hinge mounting, lower

1шт.

21

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8" - 24 NF x 2", plated

1шт.

22

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", special

1шт.

23

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

2шт.
