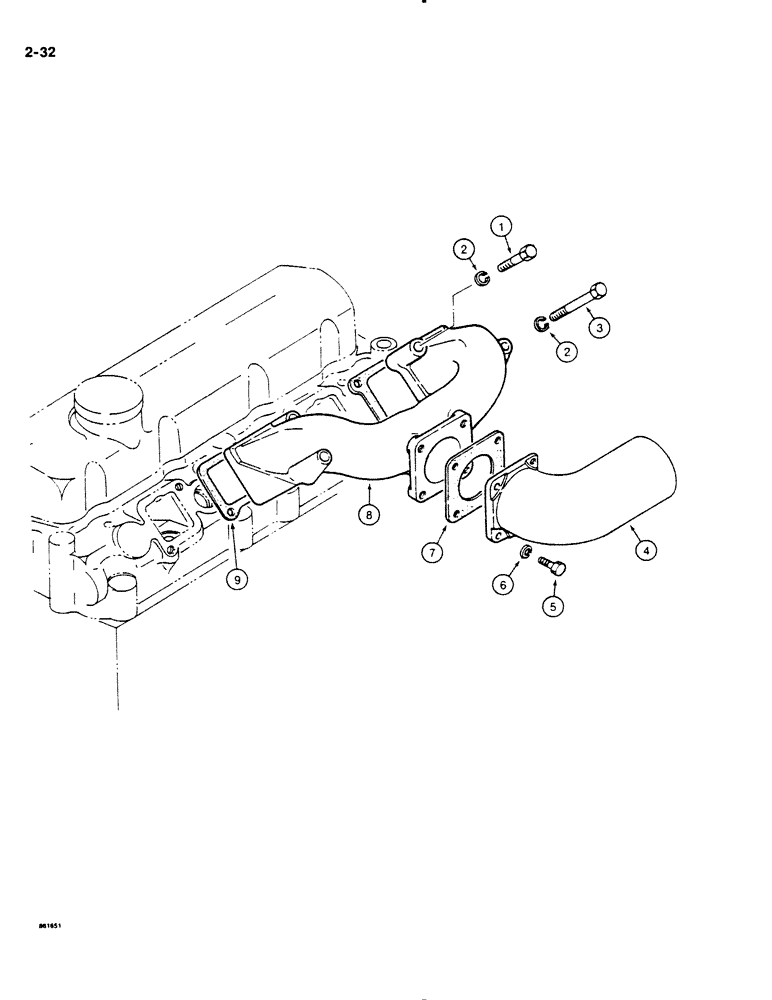

Запчасти Case DH4B (2-32) - INTAKE MANIFOLD (02) - ENGINE

1

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex head, 8 mm - 1.25 x 45 mm (8.8), plated

2шт.

2

892-1108

LOCK WASHER,M8

plated M8

4шт.

3

514-605

BOLT,Hex, M8 x 1.25 x 95mm, Cl 8.8

- hex head, 8 mm - 1.25 x 95 (8.8), plated, special

2шт.

4

H410902

CONNECTOR, ELEC

PIPE - air intake

1шт.

5

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 20 mm (8.8), plated

4шт.

6

892-1106

LOCK WASHER,M6

plated M6

4шт.

7

H410910

GASKET

- intake pipe

1шт.

8

H410860

MANIFOLD

- intake

1шт.

9

H410852

GASKET

- intaked manifold

2шт.
