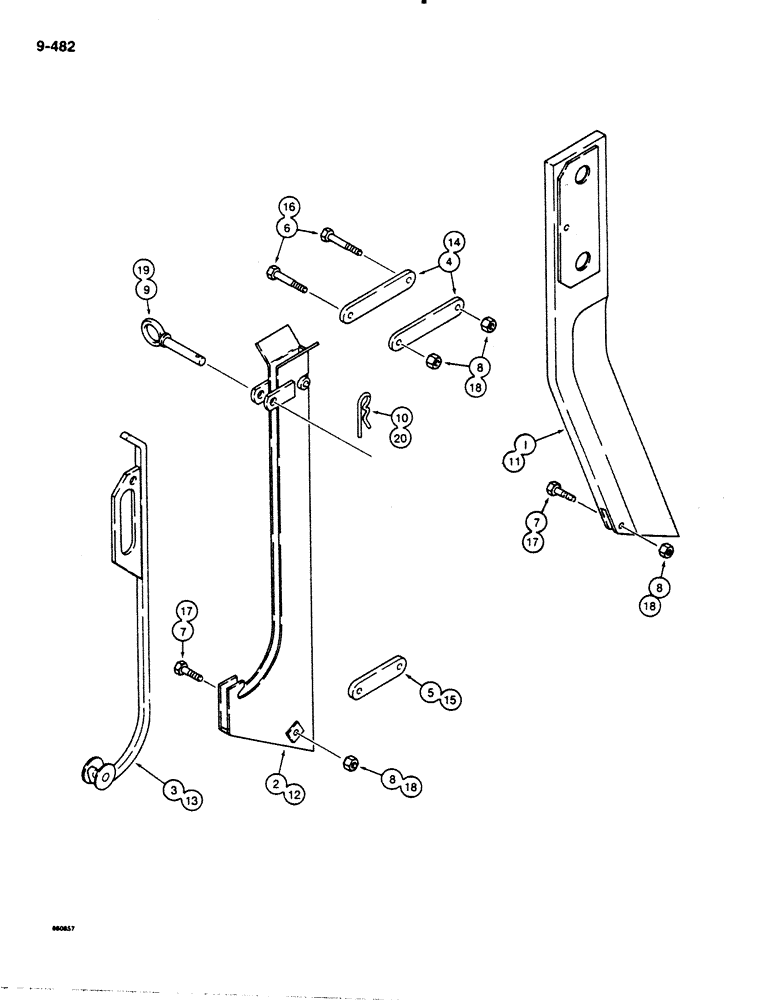

Запчасти Case DH4B (9-482) - APC PLOW BLADES AND CHUTES, 1" WIDE X 5/8" CLEARANCE (09) - CHASSIS/ATTACHMENTS

H936369

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 18" (457 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 1-10

1шт.

1

H639575

BLADE

- 1" (25 mm) x 18" (457 mm)

1шт.

H658774

CHUTE ASSEMBLY - with attaching parts, Includes: Ref. 2-10

1шт.

2

H647362

BAR

CHUTE - cable

1шт.

3

H647370

DOOR

GATE - chute

1шт.

4

H387571

DRAG LINK

LINK - chute to blade, upper

2шт.

5

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

6

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

7

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8"- 24 NF, plated

4шт.

9

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

10

H32292

PIN

HAIR PIN - gate pin

1шт.

H936377

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 24" (610 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 11-20

1шт.

11

H639583

BLADE

- 1" (25 mm) x 24" (610 mm)

1шт.

H648790

CHAIN (AG)

CHUTE ASSEMBLY - with attaching parts, Includes: Ref. 12-20

1шт.

12

H647388

CHUTE ASSY.

CHUTE - cable

1шт.

13

H647396

DOOR SEAL

GATE - chute

1шт.

14

H387589

DRAG LINK

LINK - chute to blade, upper

2шт.

15

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

16

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

17

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

19

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

20

H32292

PIN

HAIR PIN - gate pin

1шт.
