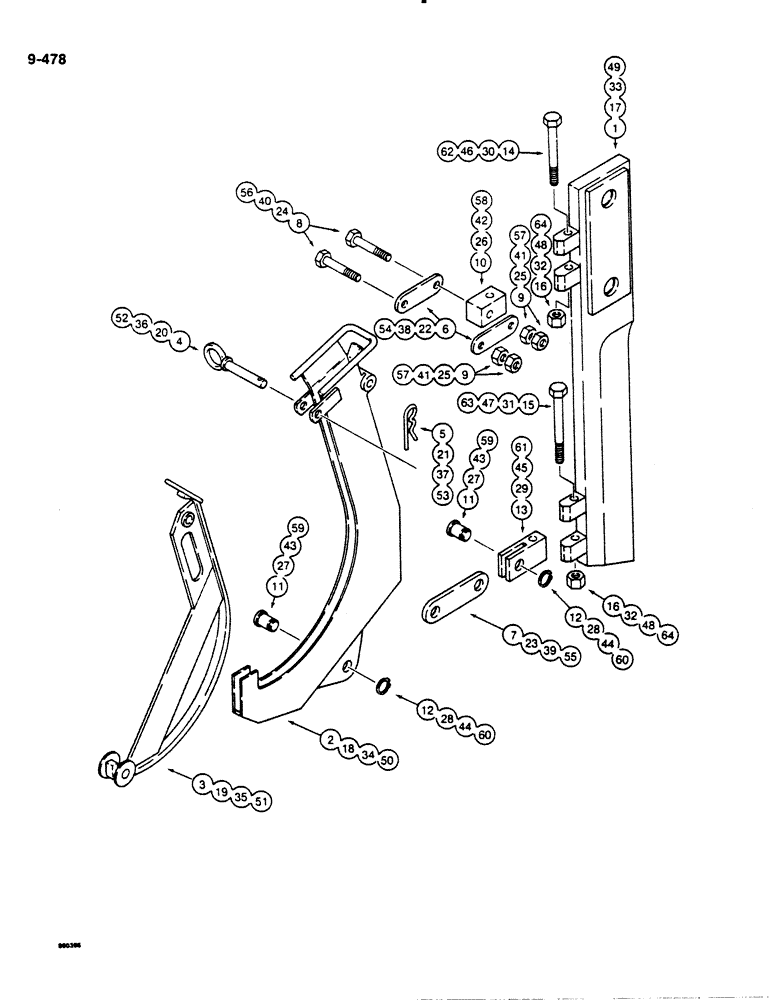

Запчасти Case DH4B (9-478) - STRAIGHT PLOW BLADES AND CHUTES, 3/4" WIDE X 1/2" CLEARANCE AND 1" WIDE X 3/4" CLEARANCE (09) - CHASSIS/ATTACHMENTS

H938837

BLADE AND CHUTE ASSEMBLY - 3/4" (19 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 1-16

1шт.

1

H6070323

BLADE - 3/4" (19 mm) x 12" (305 mm)

1шт.

2

H664995

CHUTE ASSY.

CHUTE - cable

1шт.

3

H670299

DOOR

GATE - chute

1шт.

4

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

5

H32292

PIN

HAIR PIN - gate pin

1шт.

6

H429514

LINK

- chute to blade hinge, upper

2шт.

7

H420927

LINK

- chute to blade hinge, lower

1шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

9

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

4шт.

10

H429670

PIVOT

HINGE - chute, upper

1шт.

11

H433755

PIN

- lower link to chute and hinge

2шт.

12

A33531

SNAP RING,#75, Ext

RING, Snap, , pin #75, Ext

2шт.

13

H420901

PIVOT

HINGE - chute, lower

1шт.

14

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

15

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

16

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

H938852

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 12" (305 mm) cover depth x 3/4" (19 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 17-32

1шт.

17

H670489

BLADE

- 1" (25 mm) x 12" (305 mm)

1шт.

18

H664987

CHUTE ASSY.

CHUTE - cable

1шт.

19

H670307

DOOR

GATE - chute

1шт.

20

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

21

H32292

PIN

HAIR PIN - gate pin

1шт.

22

H429514

LINK

- chute to blade hinge, upper

2шт.

23

H429506

LINK

- chute to blade hinge, lower

1шт.

24

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

25

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

4шт.

26

H429670

PIVOT

HINGE - chute, upper

1шт.

27

H433152

PIN

- lower link to chute and hinge

2шт.

28

A33531

SNAP RING,#75, Ext

RING, Snap, , pin #75, Ext

2шт.

29

H429530

PIVOT

HINGE - chute, lower

1шт.

30

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

31

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

32

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

H938860

BLADE AND CHUTE ASSEMBLY - 3/4" (19 mm) wide blade x 18" (457 mm) cover depth x 1/2" (13 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 33-48

1шт.

33

H670331

BLADE

- 3/4" (19 mm) 18" (457 mm)

1шт.

34

H670364

CHUTE ASSY.

CHUTE - cable

1шт.

35

H670356

DOOR

GATE - chute

1шт.

36

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

37

H32292

PIN

HAIR PIN - gate pin

1шт.

38

H429514

LINK

- chute to blade hinge, upper

2шт.

39

H420927

LINK

- chute to blade hinge, lower

1шт.

40

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

41

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

4шт.

42

H429670

PIVOT

HINGE - chute, upper

1шт.

43

H433755

PIN

- lower link to chute and hinge

2шт.

44

A33531

SNAP RING,#75, Ext

RING, Snap, , pin #75, Ext

2шт.

45

H420901

PIVOT

HINGE - chute, lower

1шт.

46

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

47

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

48

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

H938845

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 18" (457 mm) cover depth x 3/4" (19 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 49-64

1шт.

49

H670505

BLADE

- 1" (25 mm) x 18" (457 mm)

1шт.

50

H670513

CHUTE ASSY.

CHUTE - cable

1шт.

51

H669523

DOOR

GATE - chute

1шт.

52

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

53

H32292

PIN

HAIR PIN - gate pin

1шт.

54

H429514

LINK

- chute to blade hinge, upper

2шт.

55

H429506

LINK

- chute to blade hinge, lower

1шт.

56

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

57

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2" - 13 NC, plated

4шт.

58

H429670

PIVOT

HINGE - chute, upper

1шт.

59

H433152

PIN

- lower link to chute and hinge

2шт.

60

A33531

SNAP RING,#75, Ext

RING, Snap, , pin #75, Ext

2шт.

61

H429530

PIVOT

HINGE - chute, lower

1шт.

62

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

63

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

64

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.
