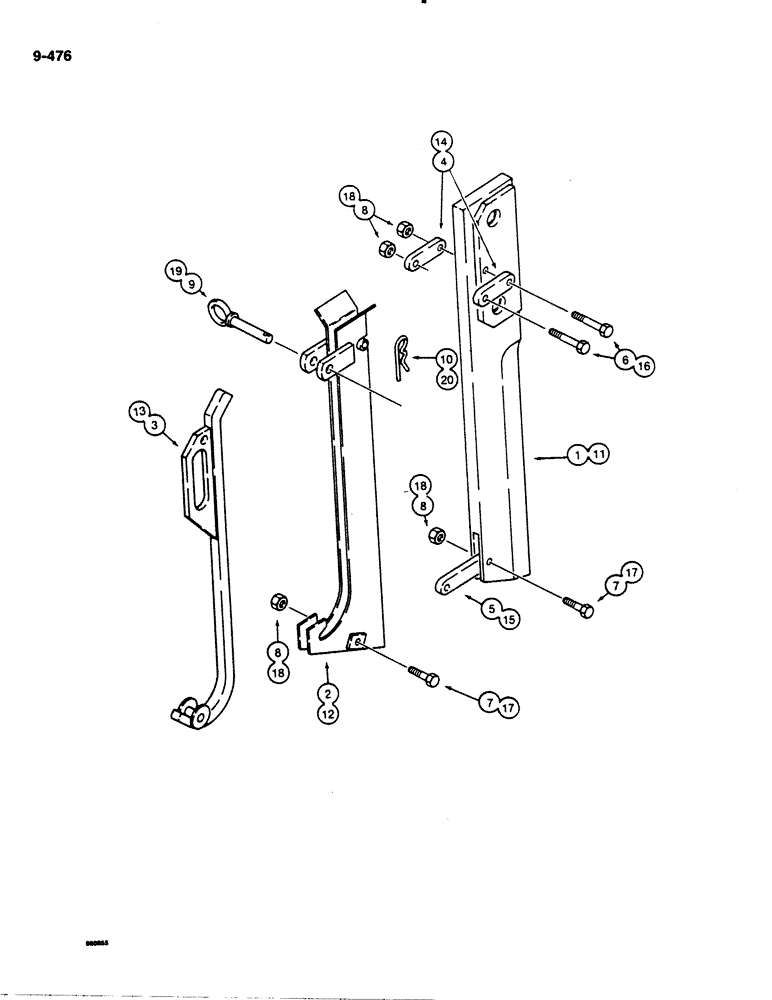

Запчасти Case DH4B (9-476) - STRAIGHT PLOW BLADES AND CHUTES, 1" WIDE X 5/8" CLEARANCE (09) - CHASSIS/ATTACHMENTS

H936310

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 18" (457 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 1-10

1шт.

1

H639401

BLADE

- 1" (25 mm) x 18" (457 mm)

1шт.

H648766

ATTACHMENT

CHUTE ASSEMBLY - with attaching parts, Includes: Ref. 2-10

1шт.

2

H647461

CHAIN (AG)

CHUTE - cable

1шт.

3

H647479

CHUTE ASSY.

GATE - chute

1шт.

4

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

5

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

6

H127340

BOLT

BOLT - hex head, 3/8" - 24 x 2-1/4", grade 8, special

2шт.

7

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

9

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

10

H32292

PIN

HAIR PIN - gate pin

1шт.

H936328

BLADE AND CHUTE ASSEMBLY - 1" (25 mm) wide blade x 24" (610 mm) cover depth x 5/8" (16 mm) chute clearance, machinery item, see figure 1-2 for ordering, Includes: Ref. 11-20

1шт.

11

H639419

BLADE

- 1" (25 mm) x 24" (610 mm)

1шт.

H648782

BLADE

CHUTE ASSEMBLY - with attaching parts, Includes: Ref. 12-20

1шт.

12

H647487

CHUTE (DOWNWARD)

CHUTE - cable

1шт.

13

H647495

LARGE PLATE

GATE - chute

1шт.

14

H116756

DRAG LINK

LINK - chute to blade, upper

2шт.

15

H127258

DRAG LINK

LINK - chute to blade, lower

1шт.

16

H127340

BOLT

BOLT - hex head, 3/8" - 24 NF 2-1/4", grade 8 special

2шт.

17

H127357

BOLT

BOLT - hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam self-locking, 3/8" - 24 NF, plated

4шт.

19

H537787

AXLE PIN

PIN -, Serial Range: gate-chute

1шт.

20

H32292

PIN

HAIR PIN - gate pin

1шт.
