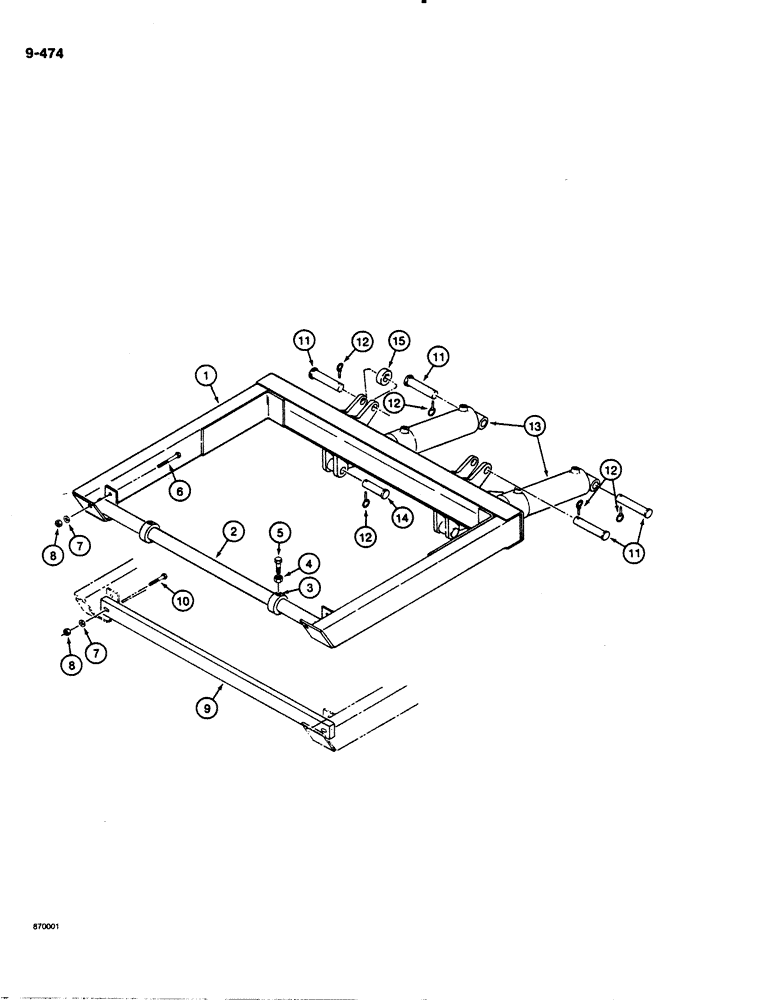

Запчасти Case DH4B (9-474) - REEL CARRIER (09) - CHASSIS/ATTACHMENTS

1

H645580

CARRIER

REEL CARRIER - cable

1шт.

2

H342501

SPINDLE

SHAFT - reel carrier

1шт.

3

H342519

COLLAR

- reel carrier shaft

2шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8" 11 NC, plated

2шт.

5

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

9

H346981

BAR

- counterweight mounting, used when additional weight is used in place of reel, if used

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

11

H69476

RETAINER

CLEVIS PIN - 1" x 6", special

4шт.

12

A30338

PIN

- lock

6шт.

13

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

ASSEMBLY - reel carrier lift, parts list Figure 8-256

2шт.

14

H70623

AXLE PIN

CLEVIS PIN - 1" x 3-1/2" long

2шт.

15

H184630

SPACER

- reel carrier

2шт.
