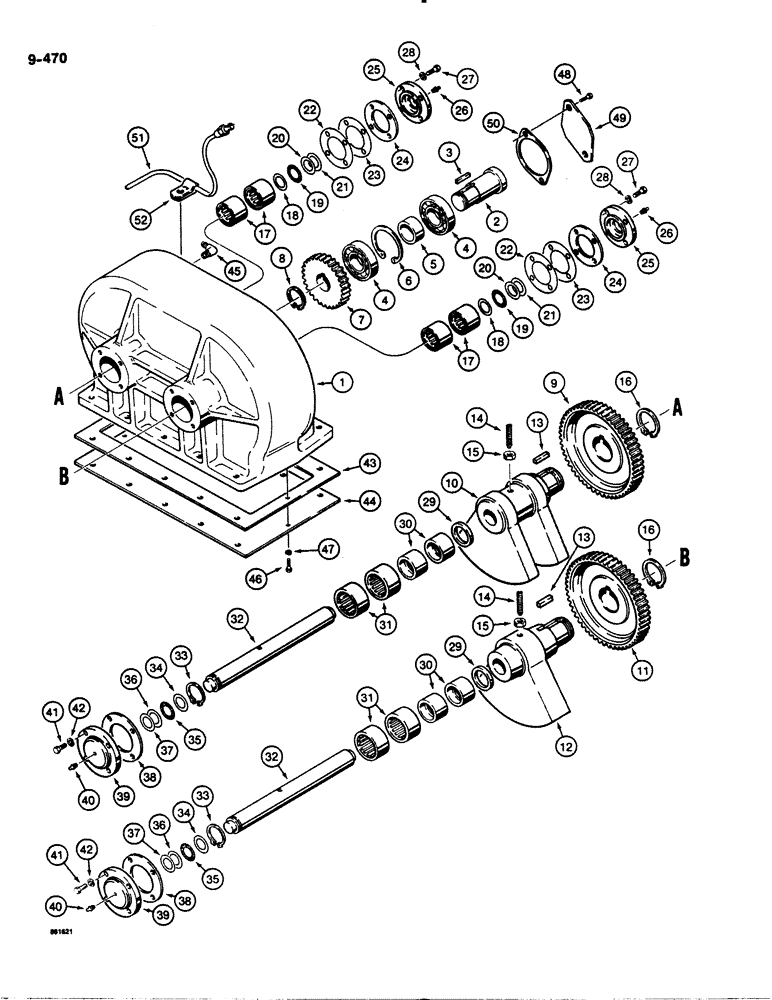

Запчасти Case DH4B (9-470) - PLOW GEARBOX (09) - CHASSIS/ATTACHMENTS

H563619

BOX

GEARBOX ASSEMBLY - plow, Case manufactured, Includes: Ref. 1-50

1шт.

1

H205559

CASE

HOUSING - gearbox

1шт.

2

H205567

SHAFT

DRIVESHAFT - gearbox

1шт.

3

H380030

KEY

- square, 1/4" x 1-3/8" long

1шт.

4

H753194

BEARING

- drive shaft

2шт.

5

H189795

SPACER

- bearing

1шт.

6

NLS

NO LONGER SERVICED

3.156", Int, #315, brg and shaft

1шт.

7

H189787

GEAR

- drive

1шт.

8

R13338

SNAP RING,#150, Ext

RING, Snap, , gear #150, Ext

1шт.

9

H189753

GEAR

- driven, counterweight shaft, left-hand

1шт.

10

H189514

WEIGHT

COUNTERWEIGHT - left-hand

1шт.

11

H189746

GEAR WHEEL

GEAR - driven, counterweight shaft, right-hand

1шт.

12

H189506

WEIGHT

COUNTERWEIGHT - right-hand

1шт.

13

H380030

KEY

- square, 1/4" x 1-3/8" long

2шт.

14

178-289

SET SCREW,Hex Soc, 1/2"-13 x 2"

- hex socket headless, 1/2" - 13 NC x 2", dog point

2шт.

15

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

16

F40807

SNAP RING,#225, Ext

RING, Snap, , gear #225, Ext

2шт.

17

H753145

NEEDLE BEARING

BEARING - counterweight shaft, front

4шт.

18

G46081

BEARING WASHER

THRUST WASHER - .032" (0.81 mm) thick, shaft bearing

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Shaft end

2шт.

20

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

THRUST WASHER - 0.095" (2.41 mm) thick

1шт.

21

G46081

BEARING WASHER

THRUST WASHER - .032" (0.81 mm) thick

1шт.

22

H189878

SHIM,.005" Thk

(0.13 mm), If used .005" Thk

1шт.

23

H189886

SHIM,.015" Thk

(0.38 mm), If used .015" Thk

1шт.

24

H189860

GASKET

- shaft end cover, front

2шт.

25

H189829

CAP

- bearing end, front

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

H563619

BOX

GEARBOX ASSEMBLY - plow, Case manufactured, continued

1шт.

29

H189803

SPACER

- bearing

2шт.

30

H753160

BEARING CUP

RACE - bearing, inner

4шт.

31

H753152

NEEDLE BEARING

BEARING - counterweight shaft, rear

4шт.

32

H189761

SHAFT

- counterweight

2шт.

33

R13338

SNAP RING,#150, Ext

RING, Snap, , shaft #150, Ext

2шт.

34

G46081

BEARING WASHER

THRUST WASHER - .032" (0.81 mm) thick

2шт.

35

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Shaft end

2шт.

36

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

THRUST WASHER - 0.095" (2.41 mm) thick

1шт.

37

G46081

BEARING WASHER

THRUST WASHER - .032" (0.81 mm) thick

1шт.

38

H189852

GASKET

- shaft end cover, rear

2шт.

39

H189811

BEARING CAP

CAP - bearing end, rear

2шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

41

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

43

H18910

GASKET - housing bottom

1шт.

44

H202176

LARGE PLATE

PLATE - cover, housing bottom

1шт.

45

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

48

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Discard and use plow motor mounting hardware shown on figure 9-469 Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

49

H137844

LARGE PLATE

PLATE - discard to mount plow motor

1шт.

50

H44727

GASKET

- plate

1шт.

51

H546275

TUBE,0.25" OD x 18" L

- breather, plow gearbox

1шт.

52

H151753

CLAMP

- breather tube, see Figure 9-468 for mounting hardware

1шт.
