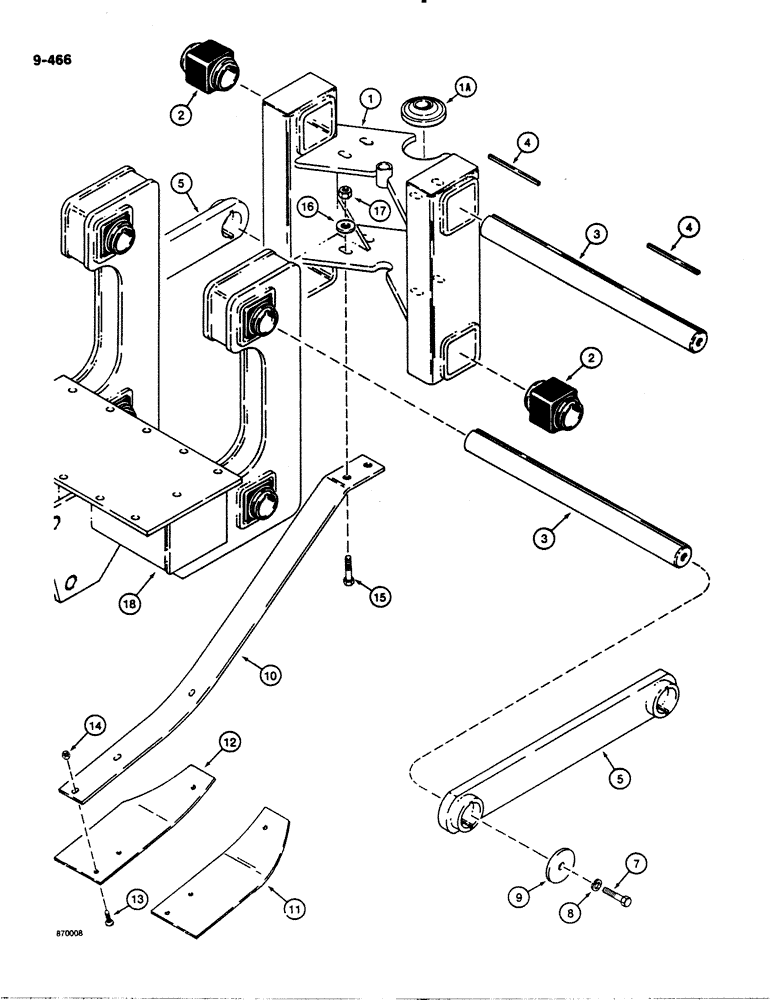

Запчасти Case DH4B (9-466) - PLOW PIVOT FRAME AND LINKS (09) - CHASSIS/ATTACHMENTS

1

H663286

FRAME

ASSEMBLY - plow pivot, Includes: Ref. 1A, 2

1шт.

1a

H363432

BALL JOINT

BEARING - plow pivot frame

2шт.

2

H235069

SEAL

BUSHING - rubber, pivot frame

4шт.

3

H410323

SHAFT - plow pivot and blade frames

4шт.

4

F21923

KEY

- shaft

8шт.

5

H661363

LINK

- pivot frame to rear frame

4шт.

7

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

9

H196626

WASHER

- flat, 5/8", special

8шт.

10

H388561

SPRING

- pivot frame, ground leveler

2шт.

11

H149666

SHOE (ASSY)

PLATE - spring shoe, right-hand

1шт.

12

H149674

SHOE (ASSY)

PLATE - spring shoe, left-hand

1шт.

13

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

BOLT - hex socket flat head, 3/8" - 24 NF x 1", grade 8, plated

6шт.

14

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8" - 24 NF, plated

6шт.

15

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened

4шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

4шт.

18

H663377

FRAME

ASSEMBLY - plow, rear, see Figure 9-468

1шт.
