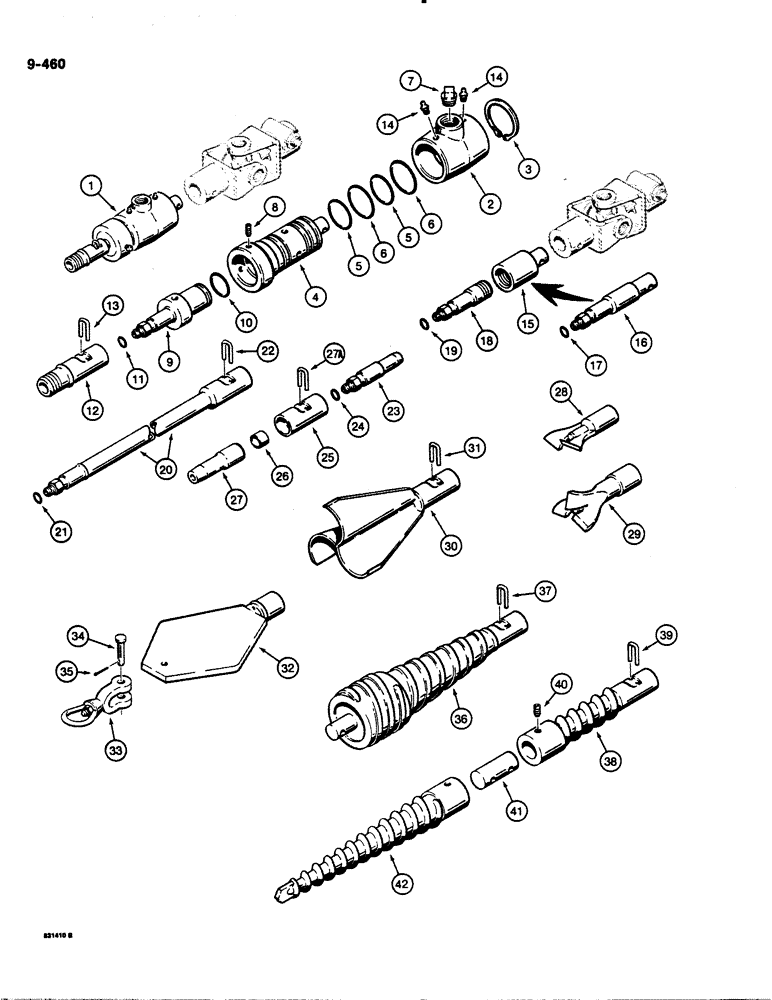

Запчасти Case DH4B (9-460) - HYDRA-BORER COUPLER AND BORING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

H522367

COUPLING

COUPLER ASSEMBLY - water, wet boring, attaches to U-joint on gearbox, Includes: Ref. 2-14

1шт.

2

H84228

RING

WATER RING - coupler

1шт.

3

F40807

SNAP RING,#225, Ext

RING, Snap, , coupler #225, Ext

1шт.

4

H84236

COUPLING

COUPLER - water

1шт.

5

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- seal backup

2шт.

6

H749317

OIL SEAL

SEAL - coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

PIPE PLUG - square head, 3/4" NPT, used for dry boring, if used

1шт.

8

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

- square head, 3/8" - 16 NC x 3/4"

3шт.

9

H522359

ADAPTER

COUPLER - quick lock, male

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- coupler, large

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, coupler, small

1шт.

12

H522375

ADAPTER

- drill stem, quick lock female to 1" NPT male

1шт.

13

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

15

H83352

ADAPTER

- 1" NPT male, dry boring, Serial Range: attaches-U-joint

1шт.

16

H646901

ADAPTER

- dry boring, quick lock male, Serial Range: attaches-U-joint

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

18

H522383

ADAPTER

- 1" NPT male to quick lock male

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

20

H672563

EXTENSION

STEM - drill, quick lock, 5 foot long

1шт.

20

H672562

ADAPTER

STEM - drill, quick lock, 10 foot long

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, drill stem

1шт.

22

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

23

H434273

NIPPLE, LUBE

COUPLER - quick lock, male

1шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, coupler

1шт.

H672594

COUPLING

COUPLER ASSEMBLY - quick lock, female, Includes: Ref. 25-27

1шт.

25

NSS

NOT SOLD SEPARAT

COUPLER - quick lock female, order H672594 coupler assembly

1шт.

26

H434276

COUPLING

BUSHING - shaft, O-ring seat

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - stub, order H672594 coupler assembly

1шт.

27a

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

28

H518837

BIT

DRILL BIT - 2", two blade, 1" NPT female

1шт.

28

H518910

BIT

DRILL BIT - 3", two blade, 1" NPT female

1шт.

29

H519249

BIT

DRILL BIT - 3", three blade, 1" NPT female

1шт.

30

H522441

REAMER

BACKREAMER - 8", quick lock female

1шт.

30

H522466

REAMER

BACKREAMER - 12", quick lock female

1шт.

31

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

32

H519504

REAMER

- fish plate, 4"

1шт.

32

H519652

REAMER

- fish plate, 6"

1шт.

32

H528497

REAMER

- fish plate, 8"

1шт.

33

H88195

FASTENER

SWIVEL - reamer

1шт.

34

H32284

AXLE PIN

CLEVIS PIN - special, 3/8" x 1-3/4" long

1шт.

35

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

36

H522409

REAMER

- compaction, 3-3/4", quick lock female

1шт.

37

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

38

H522433

BIT

- compaction, 2", quick lock female

1шт.

39

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

40

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SET SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

2шт.

41

H85233

COUPLING

COUPLER - bit

1шт.

42

H84988

BIT

- compaction, end, 2"

1шт.
