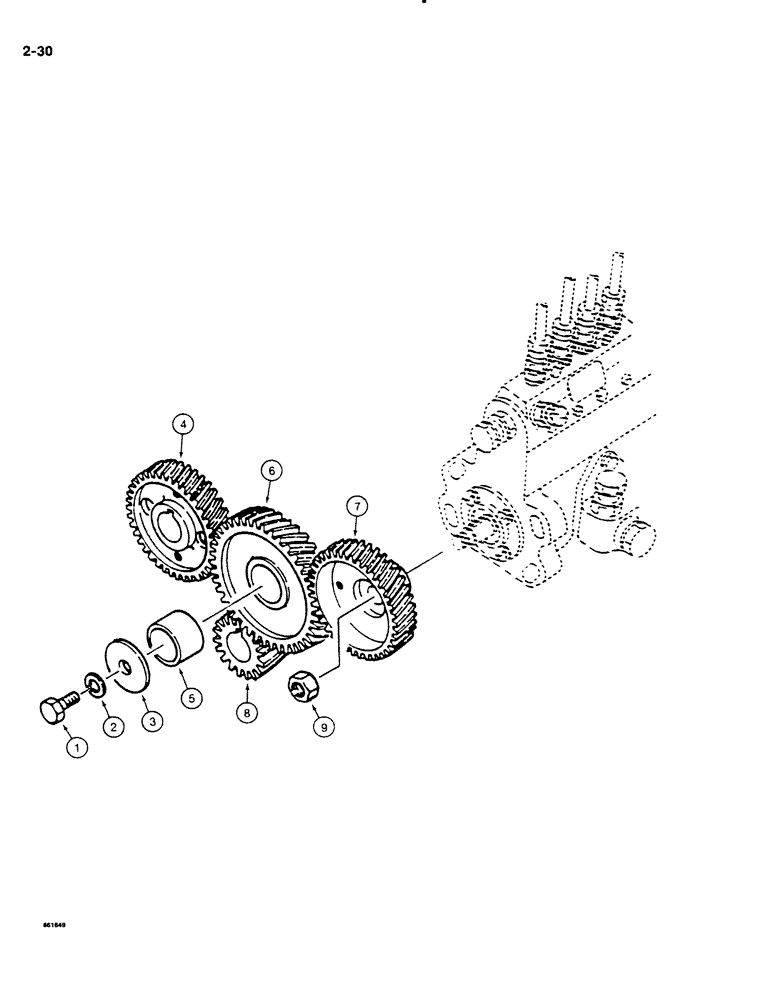

Запчасти Case DH4B (2-30) - ENGINE GEARS (02) - ENGINE

1

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

2

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

3

H410761

PLATE, THRUST

THRUST WASHER - idler gear

1шт.

4

N13827

GEAR

- camshaft

1шт.

N14099

FRONT IDLER

IDLER GEAR ASSEMBLY - engine, Includes: Ref. 5, 6

1шт.

5

H410787

BUSHING

- idler gear

1шт.

6

NSS

NOT SOLD SEPARAT

IDLER GEAR - engine, order H659458 idler gear assembly

1шт.

7

N13830

GEAR

- injection pump

1шт.

8

N13831

GEAR

- crankshaft

1шт.

9

H421396

NUT

- hex, special, injection pump gear retaining

1шт.
