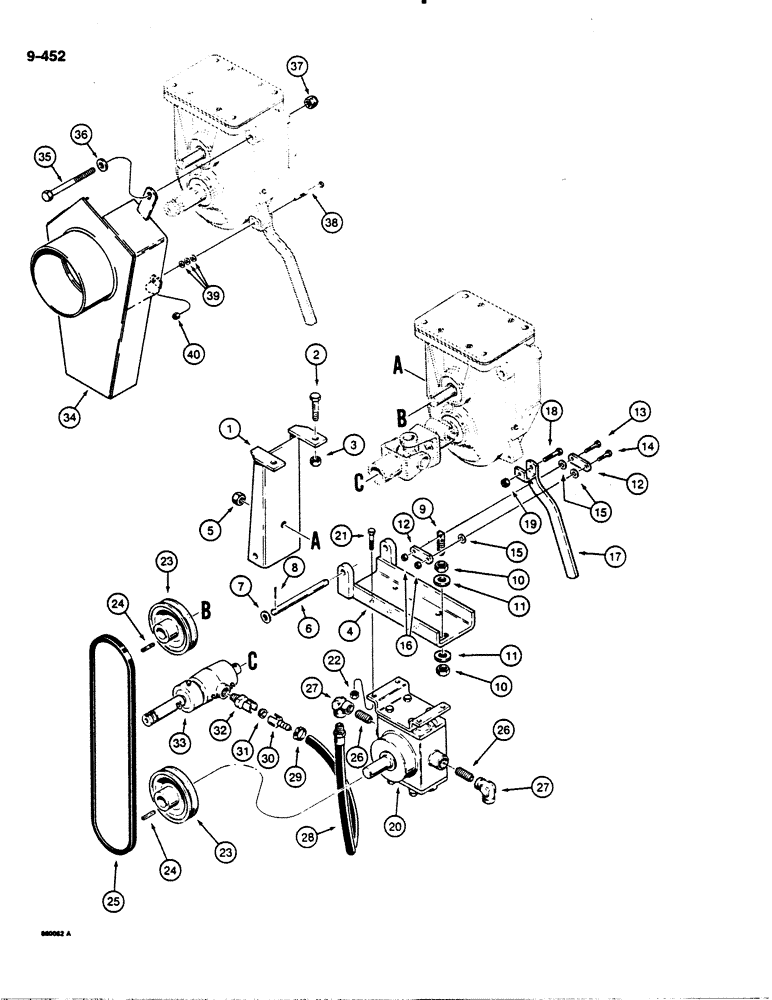

Запчасти Case DH4B (9-452) - HYDRA-BORER WATER PUMP MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H519389

SUPPORT

- water pump mounting bracket

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

2

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

4

H519397

PUMP

BRACKET - water pump mounting

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

5

129-125

NUT,1/2"-20, G5

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

6

H87460

PIN

- special, bracket mounting

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

9

H71233

STUD

- special, belt adjuster

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 - 18 NF, plated

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

11

195-541

WASHER,5/8", SAE

- flat, jam, 5/8", plated

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

12

H71241

DRAG LINK

LINK - belt adjuster

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

13

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

3шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

17

H665943

LEVER

- belt adjusting

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

18

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Not used with Ref. 34 guard Hex, 5/16"-18 x 2", G5

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

20

H668442

PUMP, WATER

PUMP ASSEMBLY - water, parts list Figure 9-454

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

22

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

23

H87494

SHEAVE

- drive and driven

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

24

T13450

KEY

- square, 1/4" x 1-1/4" long, sheave

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

25

H88005

BELT

- pump drive

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

26

221-1211

FITTING

NIPPLE - pipe, 3/4" NPT x 1-3/8" long

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

27

221-1378

ELBOW,90º, 3/4" NPT

- 90 degree, female, 3/4" NPT

2шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

28

H78295

HOSE

- 36" (914 mm) long, water

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, worm drive, SAE No. 20

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

30

H78303

COUPLING

COUPLER - quick disconnect, with 3/4" ID hose barb

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

31

H88104

GASKET

- coupler

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

32

H78311

CLAMP

COUPLER - quick disconnect, with 3/4" NPT male adapter

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

33

H522367

COUPLING

COUPLER ASSEMBLY - water, wet boring, see parts list Figure 9-460

1шт.

34

H669119

BELT

GUARD - belt, hydra-borer water pump

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

35

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

36

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

37

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

38

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Used in place of Ref. 18 bolt when Ref. 34 guard is used Hex, 5/16"-18 x 3", G5

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

39

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

12шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

40

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

Part of Water Pump Attaching Kit, P/N H668475

1шт.

H668475

ATTACHMENT

KIT - water pump attaching, includes Refs. 1, 4-32 and 34-40

1шт.
