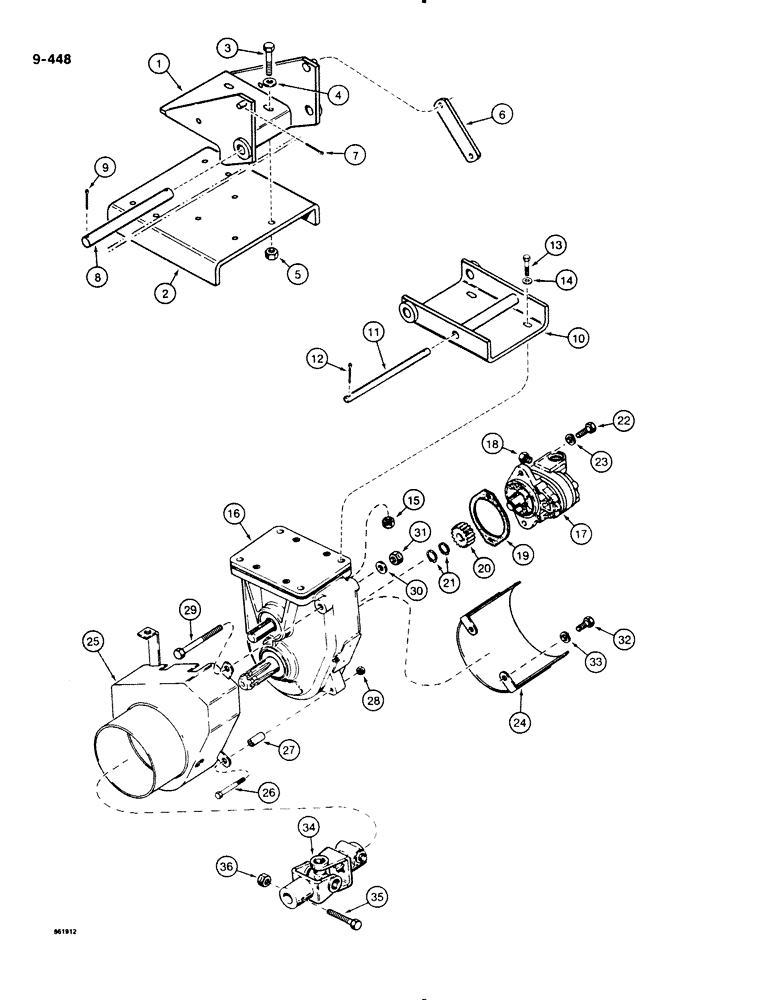

Запчасти Case DH4B (9-448) - HYDRA-BORER GEARBOX AND MOTOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H553370

BRACKET

FRAME - hydra-borer mounting

1шт.

2

H383059

BRACKET

- hydra-borer mounting

1шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

4

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

8шт.

5

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

8шт.

6

H175430

LINK

- gearbox mounting bracket to hydra-borer frame

2шт.

7

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

8

H175448

SHAFT

PIN - hydra-borer pivot

1шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

10

H553388

CHANNEL

BRACKET - hydra-borer gearbox mounting

1шт.

11

H175448

SHAFT

PIN - locking, hydra-borer gearbox

1шт.

12

H32292

PIN

HAIR PIN - special, hydra-borer gearbox locking pin

2шт.

13

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

14

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

15

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

16

H666875

GEARBOX ASSY

GEARBOX ASSEMBLY - hydra-borer, parts list Figure 9-450

1шт.

17

H654814

MOTOR

ASSEMBLY - hydra-borer, parts list Figure 8-264

1шт.

18

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT, do not use galvanized

1шт.

19

H32375

GASKET

- motor

1шт.

20

H426023

SPUR

GEAR - input pinion, included with H666875 gearbox

1шт.

21

A27521

SNAP RING,#68, Ext

RING, Snap, , gear #68, Ext

2шт.

22

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

24

H645838

SHIELD

- hydra-borer shaft

1шт.

25

H645788

GUARD

- hydra-borer

1шт.

26

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

27

H217174

SPACER

-, Serial Range: gearbox-guard

1шт.

28

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

29

113-256

BOLT

BOLT - hex head, 3/8" - 16 NC x 4-1/2", plated

1шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

31

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Included with H666875 gearbox Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Included with H666875 gearbox 3/8"

2шт.

34

H511113

JOINT

U-JOINT ASSEMBLY - hydra-borer attachment, parts list Figure 9-456

1шт.

35

113-2259

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

1шт.

36

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.
