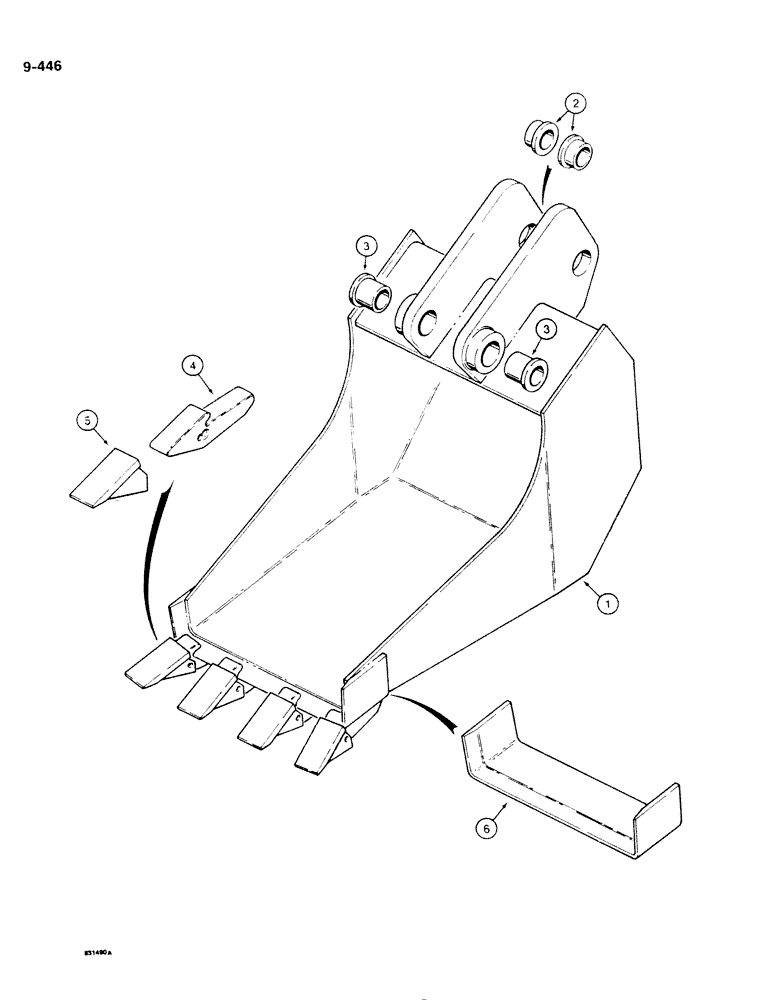

Запчасти Case DH4B (9-446) - BACKHOE BUCKETS, BELLHOLE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

H905109

BUCKET ASSEMBLY - 12" (305 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H61424

HALF BLADE

CUTTING EDGE - 12" (305 mm) bucket

1шт.

1

H905117

BUCKET ASSEMBLY - 18" (457 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H61432

HALF BLADE

CUTTING EDGE - 18" (457 mm) bucket

1шт.

1

H905125

BUCKET ASSEMBLY - 22" (559 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

5шт.

5

T41166

TOOTH

POINT - tooth

5шт.

6

H61440

HALF BLADE

CUTTING EDGE - 22" (559 mm) bucket

1шт.

1

H905133

BUCKET ASSEMBLY - 36" (914 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

5шт.

5

T41166

TOOTH

POINT - tooth

5шт.

6

H61457

BLADE

CUTTING EDGE - 36" (914 mm) bucket

1шт.
