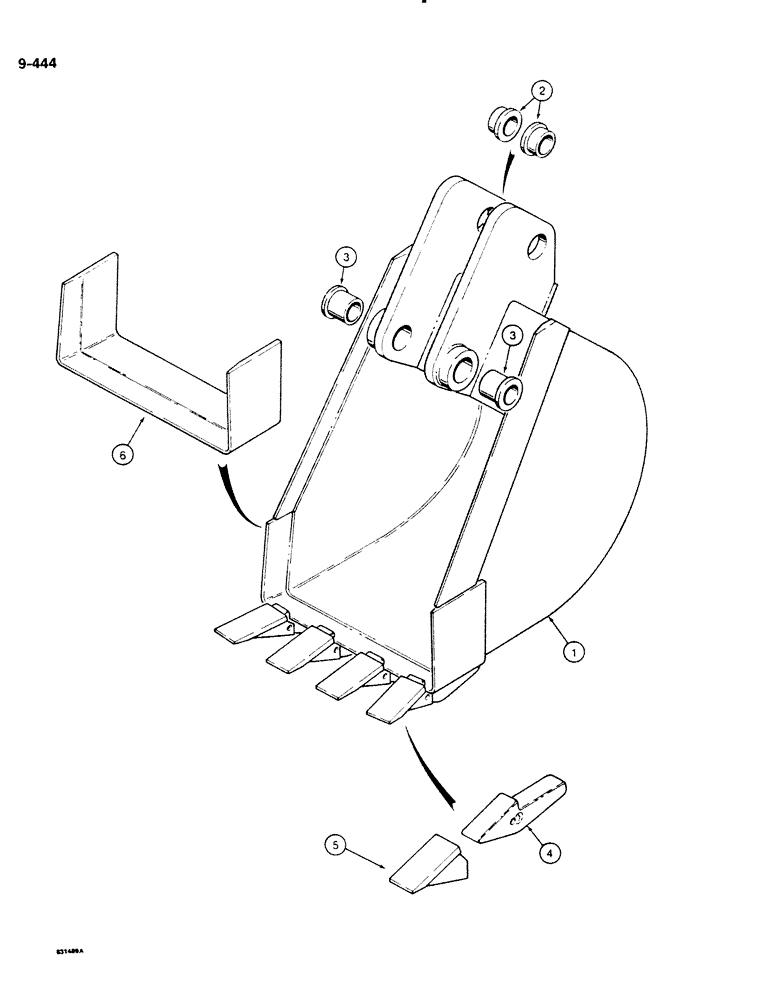

Запчасти Case DH4B (9-444) - BACKHOE BUCKETS, STANDARD BUCKETS (09) - CHASSIS/ATTACHMENTS

1

H905158

BUCKET

ASSEMBLY - 12" (305 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H51565

EDGE, CUTTING

CUTTING EDGE - 12" (305 mm) bucket

1шт.

1

H905166

BUCKET

ASSEMBLY - 16" (406 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H51615

EDGE, CUTTING

CUTTING EDGE - 16" (406 mm) bucket

1шт.

1

H905174

BUCKET ASSEMBLY - 20" (508 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H51664

EDGE, CUTTING

CUTTING EDGE - 20" (508 mm) bucket

1шт.

1

H905182

BUCKET ASSEMBLY - 24" (610 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H50781

HALF BLADE

CUTTING EDGE - 24" (610 mm) bucket

1шт.

1

H905190

BUCKET ASSEMBLY - 36" (914 mm), machinery item - see figure 1-2 for ordering, Includes: Ref. 2-6

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H51714

EDGE

CUTTING EDGE - 36" (914 mm) bucket

1шт.
