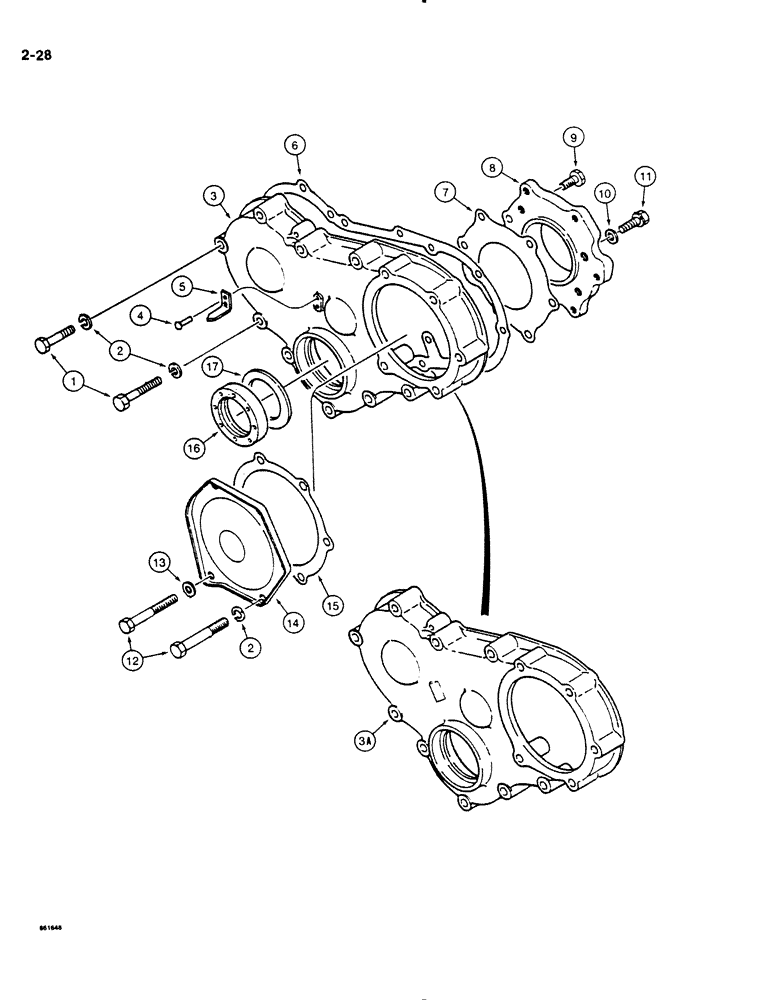

Запчасти Case DH4B (2-28) - FRONT COVER (02) - ENGINE

1

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8), plated

8шт.

2

892-1108

LOCK WASHER,M8

plated M8

13шт.

3

H413955

COVER

- engine, front, timing gear, used before engine Serial Number 133592

1шт.

3a

N9339

COVER

- engine, front timing gear, used on engine Serial Number 133592 and after

1шт.

4

H420166

RIVET

- pointer retaining, used with H413955 cover

2шт.

5

H420174

POINTER

- engine timing, used with H413955 cover

1шт.

6

H411900

GASKET

- cover, front

1шт.

7

H411918

GASKET

- injection pump mounting plated

1шт.

8

H411926

PLATE

- injection pump mounting

1шт.

9

H411934

BOLT

- special, mounting plate

1шт.

10

H758680

WASHER

- flat, special

1шт.

11

H411942

BOLT

- special

1шт.

12

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

5шт.

13

H410548

WASHER

- special, sealing

1шт.

14

H410530

COVER

- injection pump gear

1шт.

15

H410522

GASKET

- gear cover

1шт.

16

N14094

OIL SEAL

- oil

1шт.

17

H410506

PLATE

BACKUP WASHER - oil seal

1шт.
